Product Information

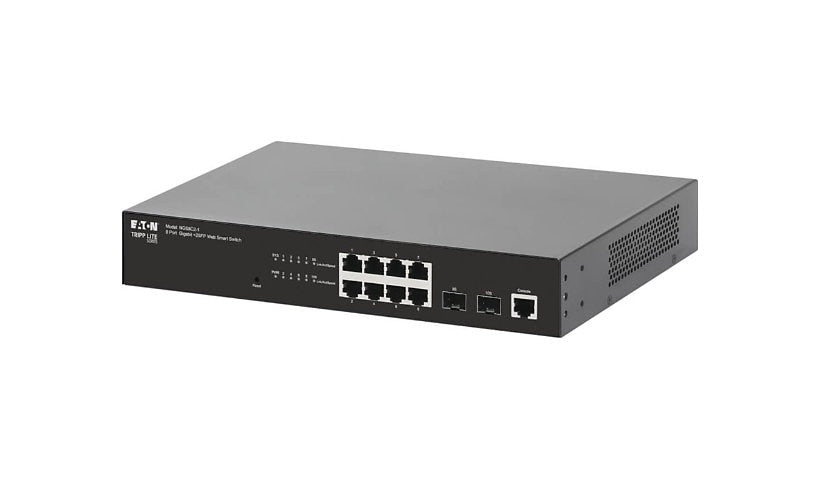

Eaton's Tripp Lite NGS8C2-1 is a fanless managed Gigabit switch with eight RJ-45 ports and two SFP uplinks. It offers 20 Gbps of switching capacity with 802.1x, ACLs, DHCP snooping and IP/MAC/port binding in a metal housing.
Key Features
- 8 x 10/100/1000 RJ-45 ports
- 2 x Gigabit SFP uplinks
- 20 Gbps switching capacity
- 802.1x, ACL, DHCP snooping
- Fanless metal housing
- Rack mount, rubber feet included
Product Information
Brand: Eaton
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: DHCP, RMON, SNMP
Performance: Switching capacity: 20 Gbps
MAC Address Table Size: 8000 entries
Jumbo Frame Support: 9KB
Features: 802.1x authentication, Access Control List (ACL) support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Crossover detection, DHCP snooping, Fanless, Flow control, IP/Mac/Port Binding (IPMB), Metal housing, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Storm Control, Tagged VLAN, Trunking, VLAN support, VPN support
Smart: Yes
Connectivity
Ports: 10
Port Quantity: 8
Port Type: 10/100/1000
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 2 x Gigabit LAN SFP uplink, 8 x 10/100/1000 Base-T RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Port status, Power, SFP
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 8.1 inch
Weight: 5.4 lbs
Included Items
Included Accessories: 4 rubber feet
Certifications and Listing
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, Plug and Play, RoHS
Compliant Standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
