Product Information

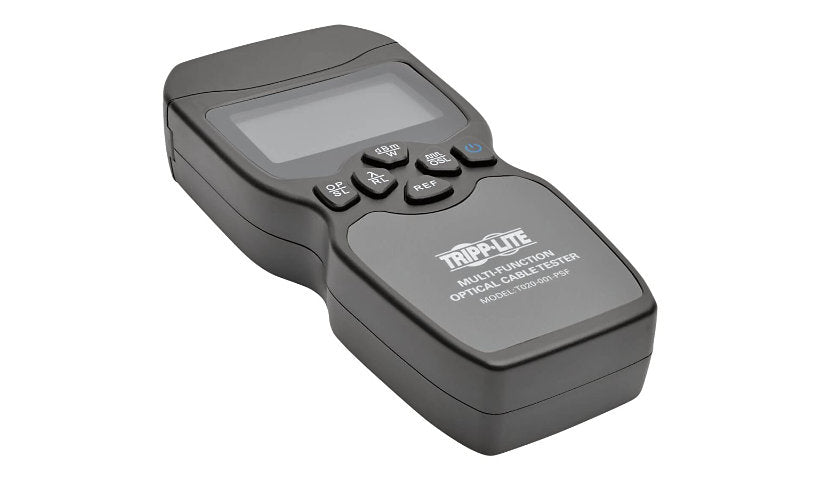

The Eaton Tripp Lite T020-001-PSF is an all-in-one fiber cable tester that combines an optical power meter, a laser light source and a visual fault locator for finding breaks and measuring insertion and optical power loss. The power meter reads 850, 1300, 1310, 1490, 1550 and 1625 nm, and the light source runs at 1310 and 1550 nm. Its FC ports accept optional SC, ST or LC adapters, an LCD and auto power off. Three AA batteries, cleaning swabs and a carrying case are included, with a 2 year limited warranty.
Key Features
- Power meter, source, VFL
- 850 to 1625 nm meter
- 1310/1550 nm laser source
- FC with optional adapters
- 3 AA batteries included
- 2 year warranty
Product Information
Tests, Tools and Measurements: Light Source, Optical power meter, Visual Fault Locator (VFL)
Media: Fiber
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: Fiber Cable Tester Power Meter Light Source Visual Fault Locator
Product Type: Network tester
Packaged Quantity: 1
Network and Communication
Features: Automatic power off
Connectivity
Connectors: FC
Power
Batteries Required: 3
Supported Battery Size: AA
Batteries Included: 3
Technical Information
Fiber Wavelength: 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 850 nm
Signal Source: Laser
Display Screen: LCD
Included Items
Included Accessories: Carrying case, Cleaning swabs
Certifications and Listing
Compliant Standards: RoHS
Warranty
Manufacturer Limited Warranty: 2 years
