Product Information

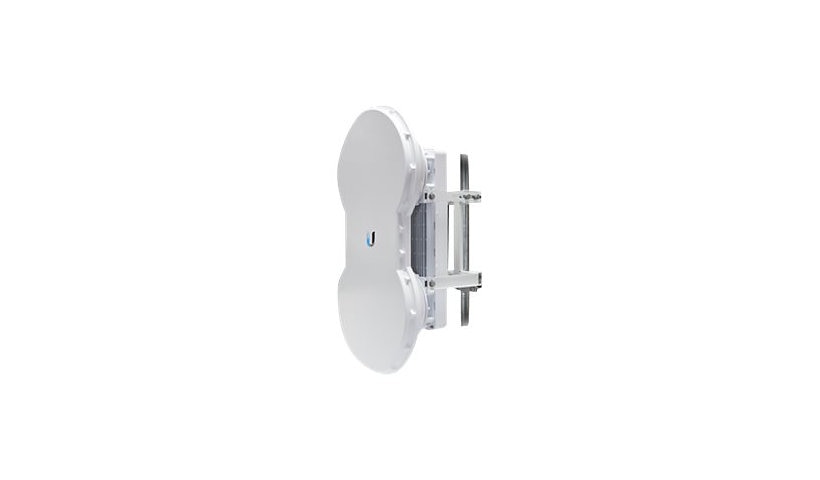

The Ubiquiti airFiber 5 is a carrier class 5 GHz point to point backhaul radio with a high isolation dual antenna design (23 dBi), rated up to 1.2 Gbps and up to about 62 miles. It has a Gigabit PoE data port, a management port and an auxiliary port, AES encryption and a -40 to 131 °F range, and includes a PoE injector and pole mount. This is a backhaul radio, not a standalone antenna.
Key Features
- 5 GHz PtP backhaul radio
- Up to 1.2 Gbps
- Up to about 62 miles
- 23 dBi dual antenna design
- Gigabit PoE + management ports
- PoE injector, pole mount included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti airFiber
Model: 5
Product Type: Wireless bridge
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirFiber
Encryption: 128-bit AES
Data Transfer Rate: 1.2 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, QPSK
Wireless LAN: AirFiber
Antenna Gain Level: 23 DBi
Max Range Open Space: 62 miles
Frequency Band: 5 GHZ
Operating System Edition: AirOS
Features: GPS sync compatible, Pole mountable
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45, 1 x auxiliary - RJ-12, 1 x management - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 40 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Port transmission speed, Power
Dimensions and Weight
Height: 36.9 inch
Width: 18.4 inch
Depth: 11.1 inch
Weight: 35.27 lbs
Included Items
Included Accessories: PoE injector, Pole mount
Certifications and Listing
Compliant Standards: FCC, IC
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - parts and labor - 1 year
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
