Product Information

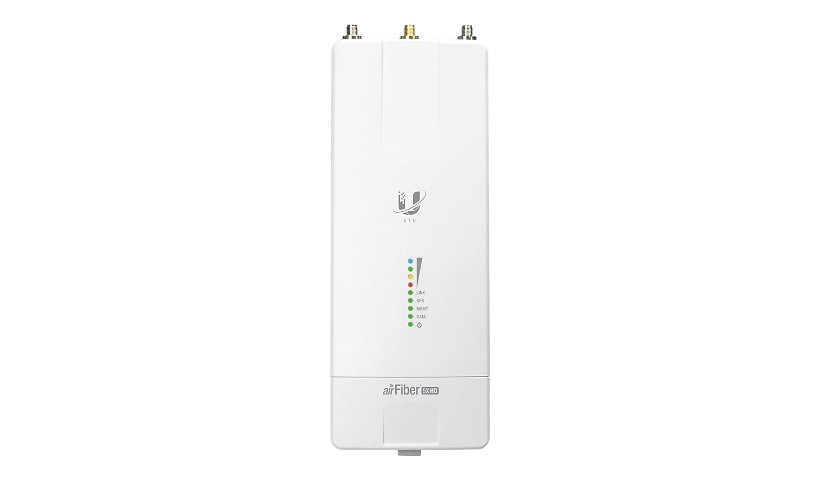

The Ubiquiti airFiber 5XHD is a modular 5 GHz point to point radio that pairs with a range of Ubiquiti antennas (sold separately), with up to 4096 QAM and about 1 Gbps throughput. It has a Gigabit PoE data port, a Gigabit management port, SMA and RP-SMA antenna ports, about 12 W draw and includes a PoE injector and pole mount. This is a radio, not an antenna.
Key Features
- 5 GHz modular PtP radio
- Up to about 1 Gbps
- 4096 QAM
- Gigabit PoE + management ports
- Antenna sold separately
- PoE injector, pole mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti airFiber
Model: 5XHD
Product Type: Wireless bridge
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirFiber
Encryption: 128-bit AES
Data Transfer Rate: 1 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, QPSK
Wireless LAN: AirFiber
Max Range Open Space: 124 miles
Frequency Band: 5 GHZ
Operating System Edition: AirOS F
Features: DFS support, GPS sync compatible, Hybrid Division Duplexing (HDD), Pole mountable, Waterproof, Xtreme Range Technology (xRT)
Connectivity
Interface Provided: 1 x 1000Base-T (management) - RJ-45, 1 x 1000Base-T (PoE) - RJ-45, 1 x antenna - SMA, 2 x antenna - RP-SMA
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 12 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 8.8 inch
Width: 3.2 inch
Depth: 1.9 inch
Weight: 12.34 ounce
Included Items
Included Accessories: PoE injector, Pole mount
Certifications and Listing
Compliant Standards: FCC, IC, IP67
Warranty
Service Activation: No
