Product Information

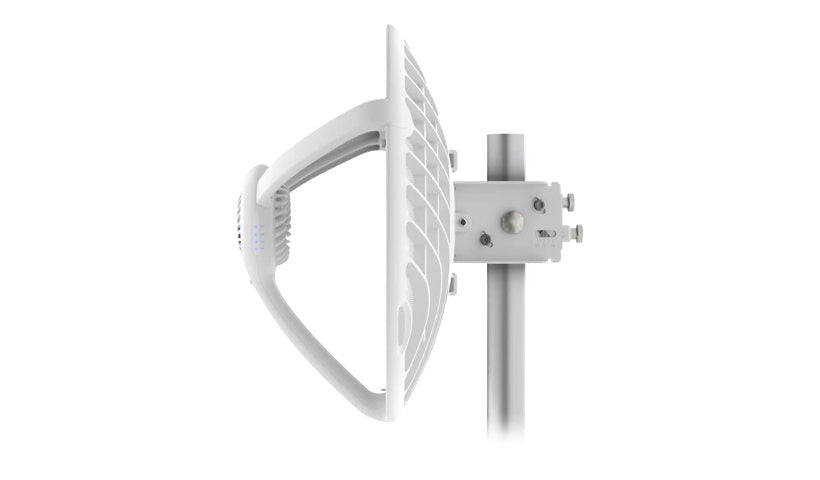

The Ubiquiti airFiber AF60-LR is a 60 GHz point to point bridge radio with an integrated 43 dBi dish, rather than a standalone antenna. It is rated for 1.8 Gbps and up to 7 miles in open space using Wave technology, with an ARM Cortex-A7 processor, built-in GPS, Bluetooth setup, AES and WPA2-PSK encryption, NTP, syslog and a speed test tool. It has one gigabit RJ-45 port with passive PoE, draws 18 W and has 24 kV ESD protection. A PoE injector and pole mount are included. The spec sheet lists 256 GB of DDR3 RAM, which looks like a data error, so please confirm if it matters.
Key Features
- Bridge radio, 43 dBi dish
- 60 GHz point to point
- 1.8 Gbps, up to 7 miles
- GPS and Bluetooth setup
- Gigabit port, passive PoE, 18 W
- PoE injector and pole mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti airFiber
Model: 60 LR
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirFiber
Encryption: AES, WPA2-PSK
Data Transfer Rate: 1.8 GBps
Wireless LAN: AirFiber
Antenna Gain Level: 43 DBi
Max Range Open Space: 7 miles
Frequency Band: 60 GHZ
Features: 24KV ESD Protector (air-gap discharge), 24KV ESD Protector (contact discharge), Bluetooth management, Bridge mode, NTP client, Passive PoE supported, Point-to-Point (PtP) link mode, Syslog support, Test Internet speed, Wave Technology
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): Passive PoE
Power
Power Consumption Operational: 18 watt
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A7
Processors Installed: 1
RAM Installed: 256 GB
Memory Technology: DDR3 SDRAM
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: 60 GHz, GPS, Link/activity, Power
Built-in Devices: GPS
Dimensions and Weight
Height: 16.3 inch
Width: 16.3 inch
Depth: 14.2 inch
Weight: 3.31 lbs
Included Items
Included Accessories: PoE injector, Pole mount
Warranty
Service Activation: No
