Product Information

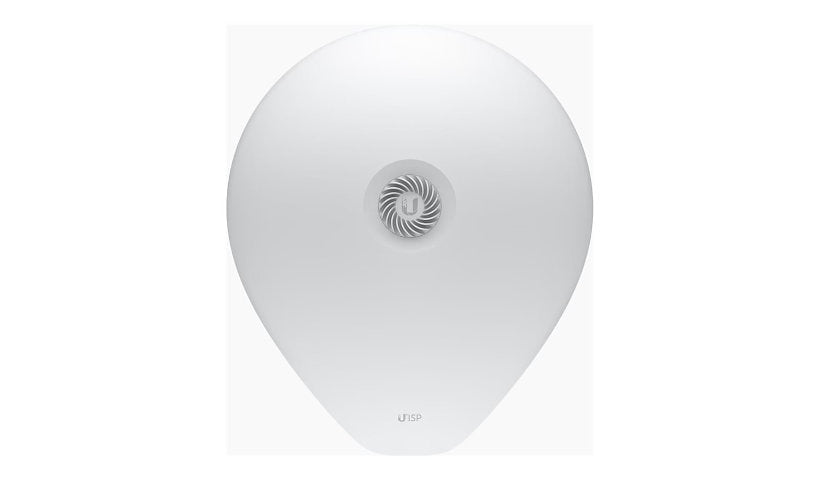

Ubiquiti's UISP airFiber 60 XR is a 60 GHz bridge for long distance links over 15 km (9 miles), with up to 5.4 Gbps (2.7 Gbps duplex), a 26 dBi antenna and a 5 GHz backup radio. It has a 10G SFP+ and a Gigabit PoE port, GPS and Bluetooth, and includes a precision alignment kit. This is a wireless bridge, not an access point.
Key Features
- 60 GHz PtP bridge, 5 GHz backup
- Up to 5.4 Gbps, 15+ km range
- 26 dBi antenna
- 10G SFP+ and 1G PoE RJ-45
- IPX6, -40 to 131 °F
- Precision alignment kit included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti airFiber
Model: 60 XR
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirFiber
Encryption: AES, WPA2-PSK
Data Transfer Rate: 5.4 GBps
Wireless LAN: AirFiber
Network Band: 5 GHz
Antenna Form Factor: Internal
Antenna Gain Level: 26 DBi
Max Range Open Space: 9 miles
Frequency Band: 60 GHZ
Features: Dual-linear polarization, Pole mountable, Reset button, UV stabilized enclosure, UV stabilized polycarbonate enclosure
Connectivity
Interface Provided: 1 x 1 Gigabit Ethernet/10Gb Ethernet - SFP+, 1 x Ethernet 1000 (PoE) - RJ-45
Power Over Ethernet (PoE): Passive PoE
Memory and Processor
Processor Type: Quad Core ARM CPU
Processor Number: Cortex-A53
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 1 GB
Memory Technology: DDR3L SDRAM
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: 5 GHz, 60 GHz, Ethernet link/activity, GPS, Power
Built-in Devices: GPS
Dimensions and Weight
Height: 30.7 inch
Width: 26.1 inch
Depth: 15.1 inch
Weight: 18.96 lbs
Included Items
Included Accessories: Precision alignment kit
Certifications and Listing
Compliant Standards: FCC, IC, IPX6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
