Product Information

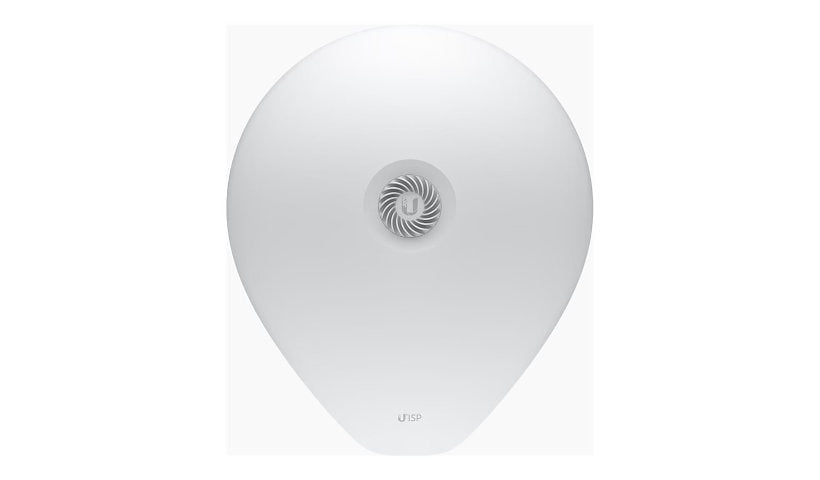

The Ubiquiti AF60-XR airFiber 60 Xtreme-Range is a multi gigabit 60 GHz bridge radio, not a standalone antenna, rated for 5.4 Gbps total (2.7 Gbps full duplex) over long links up to 9 miles in open space, with a 5 GHz backup link. It has a 26 dBi integrated antenna, quad core ARM Cortex-A53 at 1.4 GHz, 1 GB DDR3L, built-in GPS, AES and WPA2-PSK encryption and passive PoE input. It has a UV stabilized pole mount enclosure and a reset button, and comes with a precision alignment kit.
Key Features
- 60 GHz bridge, not an antenna
- 5.4 Gbps, up to 9 miles
- 5 GHz backup link
- Quad core 1.4 GHz, 1 GB
- Built-in GPS, passive PoE
- Precision alignment kit
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti airFiber
Model: 60 Xtreme-Range
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirFiber
Encryption: AES, WPA2-PSK
Data Transfer Rate: 5.4 GBps
Wireless LAN: AirFiber
Network Band: 5 GHz
Antenna Form Factor: Internal
Antenna Gain Level: 26 DBi
Max Range Open Space: 9 miles
Frequency Band: 60 GHZ
Features: Pole mountable, Reset button, UV stabilized enclosure
Connectivity
Power Over Ethernet (PoE): Passive PoE
Memory and Processor
Processor Type: Quad Core ARM CPU
Processor Number: Cortex-A53
Processors Installed: 1
Clock Speed: 1.4 GHZ
RAM Installed: 1 GB
Memory Technology: DDR3L SDRAM
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 131 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: 5 GHz, 60 GHz, Ethernet link/activity, GPS, Power
Built-in Devices: GPS
Dimensions and Weight
Height: 30.7 inch
Width: 26.1 inch
Depth: 15.1 inch
Weight: 18.96 lbs
Included Items
Included Accessories: Precision alignment kit
Certifications and Listing
Compliant Standards: FCC, IC, IPX6
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
