Product Information

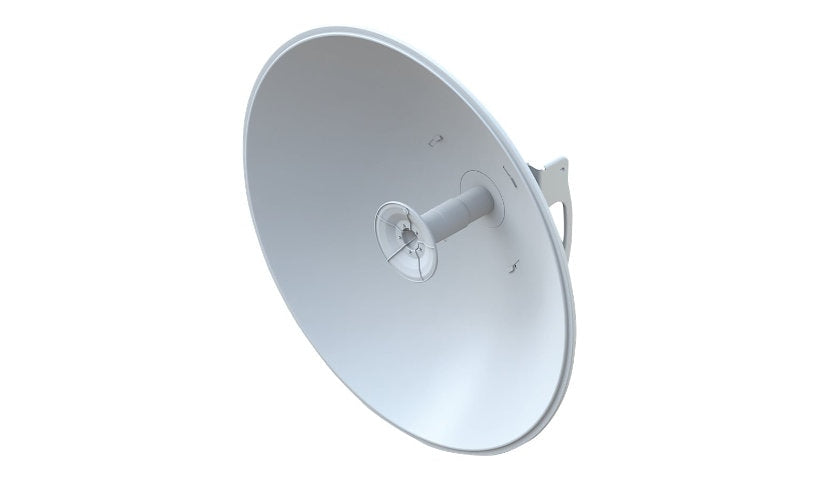

The Ubiquiti AF-5G30-S45-US is an airFiber X 2x2 dual polarity dish antenna with 30 dBi gain over 5.1 to 5.9 GHz and VSWR of 1.6:1. With an airFiber X radio it makes a backhaul link, such as from an ISP to a neighborhood tower that then feeds customers through airMAX sectors. It mounts on an outdoor pole, and a mounting kit is included.
Key Features
- Dish antenna, 30 dBi
- 5.1 to 5.9 GHz
- 2x2 dual polarity
- For airFiber X radios
- Outdoor pole mount
- Mounting kit included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti airFiber X
Model: AF-5G30-S45
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Country: United States
Network and Communication
Antenna Gain: 30 dBi
Antenna Placement: Outdoor, Pole mount
Frequency Range: 5.1 - 5.9 GHz
Technical Information
Antenna Form Type: Dish
Voltage Standing Wave Ratio (VSWR): 1.6:1
Physical Characteristics
Mounting Kit: Included
Dimensions and Weight
Height: 25.6 inch
Width: 25.6 inch
Depth: 15.2 inch
Weight: 16.31 lbs
Certifications and Listing
Compliant Standards: ETSI
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
