Product Information

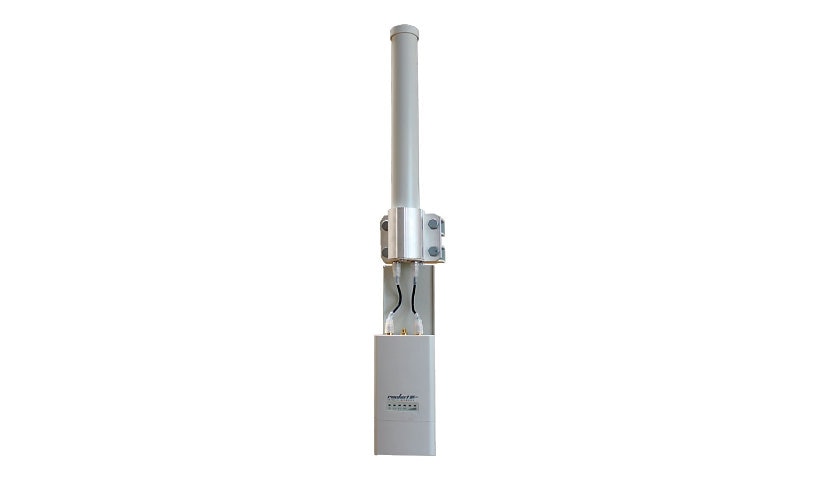

The Ubiquiti AMO-5G10 is a carrier class 2x2 dual polarity MIMO airMAX omni antenna for 5.45 to 5.85 GHz with 10 dBi gain and VSWR of 1.6:1. Paired with a Rocket M radio it creates a 360 degree base station. It is for outdoor pole mounting, and a pole mount is included. The spec lists 12 degree horizontal and vertical beamwidths, which does not fit an omni pattern, so please confirm if needed.
Key Features
- 2x2 MIMO omni antenna
- 5.45 to 5.85 GHz
- 10 dBi gain
- 360 degree coverage
- For Rocket M radios
- Pole mount included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti AirMax Omni
Model: AMO-5G10
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Network and Communication
Antenna Gain: 10 dBi
Antenna Placement: Outdoor, Pole mount
Frequency Range: 5.45 - 5.85 GHz
Directivity: Omni-directional
Technical Information
Horizontal Beamwidth: 12°
Vertical Beamwidth: 12°
Voltage Standing Wave Ratio (VSWR): 1.6:1
Dimensions and Weight
Height: 2.3 inch
Width: 0.3 inch
Depth: 0.4 inch
Weight: 1.5 lbs
Included Items
Package Content: Pole Mount
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
