Product Information

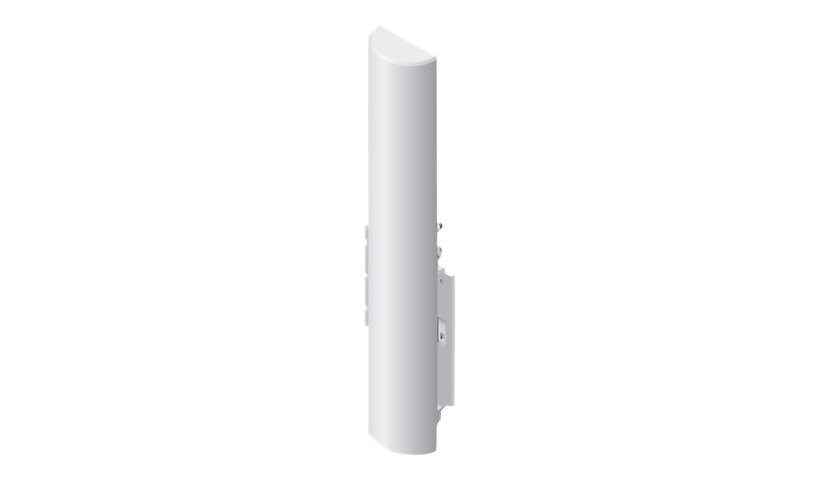

The Ubiquiti AM-5G17-90 is a carrier class 2x2 dual polarity MIMO airMAX sector antenna for 4.9 to 5.9 GHz with 17.1 dBi gain, a 72 x 93 degree beam and VSWR of 1.5:1. Paired with a Rocket M radio it forms a base station. It is for outdoor use, and a mounting kit is included.
Key Features
- 2x2 MIMO sector antenna
- 4.9 to 5.9 GHz
- 17.1 dBi gain
- For Rocket M radios
- Outdoor base station
- Mounting kit included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti AirMax
Model: Sector 5G-90-17
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Network and Communication
Antenna Gain: 17.1 dBi
Antenna Placement: Outdoor
Frequency Range: 4.9 - 5.9 GHz
Technical Information
Horizontal Beamwidth: 72°
Vertical Beamwidth: 93°
Voltage Standing Wave Ratio (VSWR): 1.5:1
Physical Characteristics
Mounting Kit: Included
Dimensions and Weight
Height: 14.4 inch
Width: 2.5 inch
Depth: 1.6 inch
Weight: 2.43 lbs
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
