Product Information

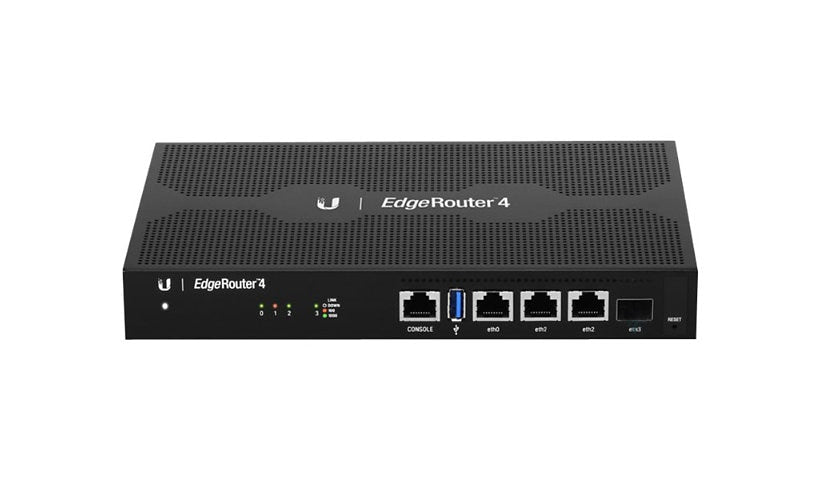

The Ubiquiti EdgeRouter 4 is a wired router running EdgeOS with three Gigabit RJ-45 ports, one SFP port, a console port and USB 3.0. It offers 4 Gbps forwarding at 128 byte packets and 3.4 million packets per second at 64 bytes, with BGP, OSPF and VRRP. Quick specs list a 1 year limited warranty.
Key Features
- 3 x GbE RJ-45, 1 x SFP, console, USB 3.0
- 4 Gbps (128 byte), 3.4 Mpps (64 byte)
- BGP, OSPF, OSPFv3, RIP, VRRP
- IPsec, L2TP, PPTP, DPI, NetFlow
- 1 GHz MIPS64 CPU, 1 GB RAM, 4 GB flash
- 1 year limited warranty per quick specs
Product Information
Product Type #2: None
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti EdgeRouter
Model: ER-4
Product Type: Router
Product Type: None
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: DDNS, IPSec, L2TP, PPPoE, PPTP
Remote Management: CLI, SNMP, SSH, Telnet
Routing Protocol: BGP, GRE, IGMP, OSPF, OSPFv3, RIP, RIPng, Static IP routing, VRRP
Bridge & Router: Forwarding performance (128-byte packet size): 4 Gbps, Forwarding performance (64-byte packet size): 3400000 packets per second
Authentication Method: RADIUS
Operating System Edition: Ubiquiti EdgeOS
Key Features: Firewall, USB port, VPN support
Features: Access Control List (ACL) support, Deep Packet Inspection (DPI), DHCP relay, DHCP server, Firewall protection, Flow control, IGMP proxy, IPv6 support, LLDP support, NAT support, NetFlow, Network Bonding support, Quality of Service (QoS), Reset button, VLAN support
Connectivity
Interface Provided: Console: 1 x RJ-45, LAN: 1 x Ethernet 1000 - SFP (mini-GBIC), LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45, USB 3.0: 1 x 9 pin USB Type A
Power
Device Type: Internal power supply
Power Consumption Operational: 13 watt
Memory and Processor
Processor Brand: MIPS
Processor Type: MIPS64
Processors Installed: 1
Clock Speed: 1 GHZ
RAM Installed: 1 GB
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, Port transmission speed
Rack Mounting Kit: Optional
Dimensions and Weight
Height: 1.2 inch
Width: 9 inch
Depth: 5.4 inch
Weight: 28.22 ounce
Certifications and Listing
Compliant Standards: IEEE 802.1Q, IEEE 802.3ad (LACP)
Warranty
Service Activation: No
