Product Information

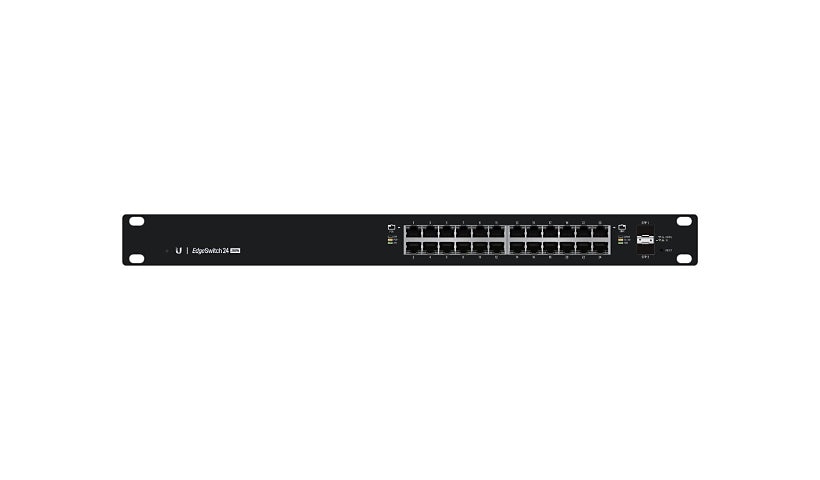

Ubiquiti's EdgeSwitch 24 (ES-24-250W) is a managed rack switch with 24 Gigabit PoE+ ports and two Gigabit SFP ports, powered by a 250 W internal supply. It offers 52 Gbps of switching capacity and Layer 3 features with ACLs, DHCP snooping and QoS.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports
- 2 x Gigabit SFP ports
- 250 W internal power supply
- 52 Gbps switching, 38.69 Mpps
- Layer 3 features, ACL, DHCP snooping
- Rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti EdgeSwitch
Model: 24
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
Routing Protocol: Policy-based routing (PBR), Static IP routing
Performance: Forwarding performance: 38.69 Mpps, Non-blocking switching capacity: 26 Gbps, Switching capacity: 52 Gbps
Capacity: ACL rules: 100, LAG groups: 6, VLANs supported: 255
MAC Address Table Size: 8K entries
Jumbo Frame Support: Yes
Features: Access Control List (ACL) support, BOOTP support, Broadcast Storm Control, Class of Service (CoS), DHCP snooping, DiffServ support, Dynamic VLAN Support (GVRP), Flow control, Generic Attribute Registration Protocol (GARP), IGMP snooping, IPv6 support, Link Aggregation Control Protocol (LACP), LLDP support, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Quality of Service (QoS), RADIUS support, Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, Syslog support, Uni-Directional Link Detection (UDLD), Unicast Storm Control, VLAN support
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP
Interface Provided: 2 x 1000Base-X SFP, 24 x 1000Base-T RJ-45 PoE+ - 34.2 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Consumption Operational: 250 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, PoE, Port transmission speed
Dimensions and Weight
Height: 1.7 inch
Width: 19.1 inch
Depth: 11.2 inch
Weight: 8.16 lbs
Certifications and Listing
Compliant Standards: ETSI 300 019, FCC, IC
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
