Product Information

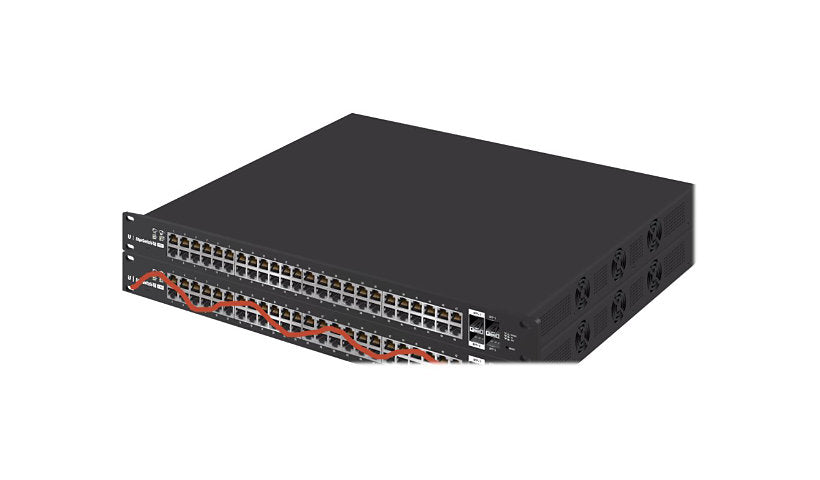

The Ubiquiti EdgeSwitch 48 (ES-48-500W) is a managed switch with 48 Gigabit PoE+ ports, two Gigabit SFP ports and two 10G SFP+ ports. It has a 500 W internal power supply and offers 70 Gbps of non-blocking switching with VLAN, STP and RSTP support.
Key Features
- 48 x Gigabit RJ-45 PoE+ ports
- 2 x Gigabit SFP and 2 x 10G SFP+ ports
- 500 W internal power supply
- 70 Gbps non-blocking switching
- Managed: VLAN, STP/RSTP, jumbo frames
- Rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti EdgeSwitch
Model: 48
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Performance: Non-blocking switching capacity: 70 Gbps
Features: 24KV ESD Protector, Jumbo Frames support, Rapid Spanning Tree Protocol (RSTP) support, Spanning Tree Protocol (STP) support, VLAN support
Connectivity
Port Quantity: 48
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): Gigabit SFP / 10 Gigabit SFP+
Ports (3rd) Quantity: 2
Interface Provided: 2 x SFP, 2 x SFP+, 48 x 1000Base-T RJ-45 PoE+
Power Over Ethernet (PoE): PoE+
QSFP Slots: SFP (mini-GBIC)
Power
Device Type: Internal power supply
Frequency: 50 - 60 hertz
Power Consumption Operational: 500 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, PoE, Port status, Port transmission speed
Dimensions and Weight
Height: 1.8 inch
Width: 18.9 inch
Depth: 13.7 inch
Weight: 11.68 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at
Compliant Standards: FCC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
