Product Information

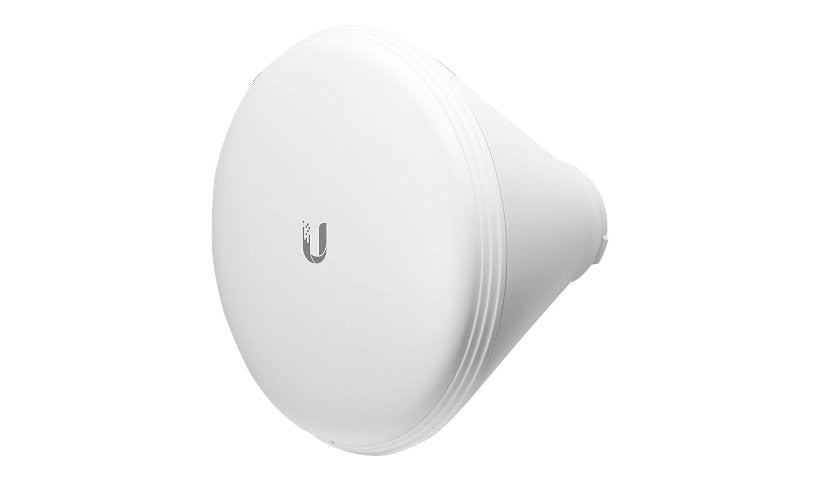

The Ubiquiti Horn-5-30 is an airMAX horn antenna for 5.15 to 5.85 GHz with 19 dBi gain and a precise 30 x 30 degree beam for exact coverage shaping. VSWR is 1.7:1.
Key Features
- Horn antenna, 19 dBi
- 5.15 to 5.85 GHz
- 30 x 30 degree beam
- airMAX compatible
- Precise beam shaping
- VSWR 1.7:1
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti
Model: Horn-5-30
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 19 dBi
Frequency Range: 5.15 - 5.85 GHz
Signaling Type: AirMax
Technical Information
Antenna Form Type: Horn
Horizontal Beamwidth: 30°
Vertical Beamwidth: 30°
Voltage Standing Wave Ratio (VSWR): 1.7:1
Dimensions and Weight
Height: 8.7 inch
Width: 8.7 inch
Depth: 7.3 inch
Weight: 2.43 lbs
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
