Product Information

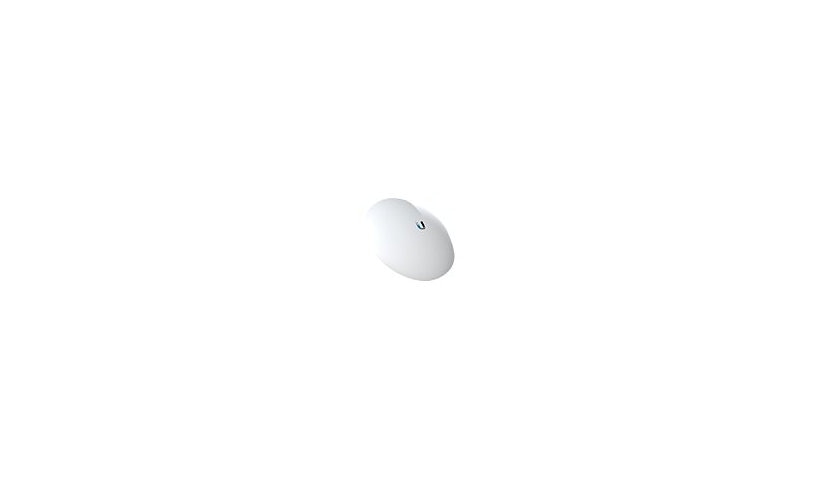

The Ubiquiti NanoBeam 2AC (NBE-2AC-13-US) is a compact 2.4 GHz airMAX ac bridge radio with a 13 dBi antenna, rather than a standalone antenna, for CPE links. It is rated for more than 330 Mbps and up to 9 miles, with a 533 MHz Atheros MIPS 74KC and 64 MB DDR2. It has one gigabit RJ-45 port with PoE, 24 kV ESD protection and about 7.5 W draw, and comes with pole and wall mounting kits.
Key Features
- Bridge radio, 13 dBi
- 2.4 GHz airMAX ac
- 330+ Mbps, up to 9 miles
- Gigabit PoE port
- About 7.5 W
- Pole and wall kits
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti NanoBeam 2AC
Model: NBE-2AC-13
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax ac, Ethernet, Fast Ethernet, Gigabit Ethernet
Wireless LAN: AirMax ac
Network Band: 2.4 GHz
Network Device: Throughput: 330+ Mbps
Antenna Form Factor: Internal
Antenna Gain Level: 13 DBi
Max Range Open Space: 9 miles
Features: 24KV ESD Protector
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 7.5 watt
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 74KC
Processors Installed: 1
Clock Speed: 533 megahertz
RAM Installed: 64 megabyte
Memory Technology: DDR2 SDRAM
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: LAN, Power
Dimensions and Weight
Height: 7.4 inch
Width: 7.4 inch
Depth: 4.9 inch
Weight: 18.69 ounce
Included Items
Included Accessories: Pole mount, Wall mounting kit
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
