Product Information

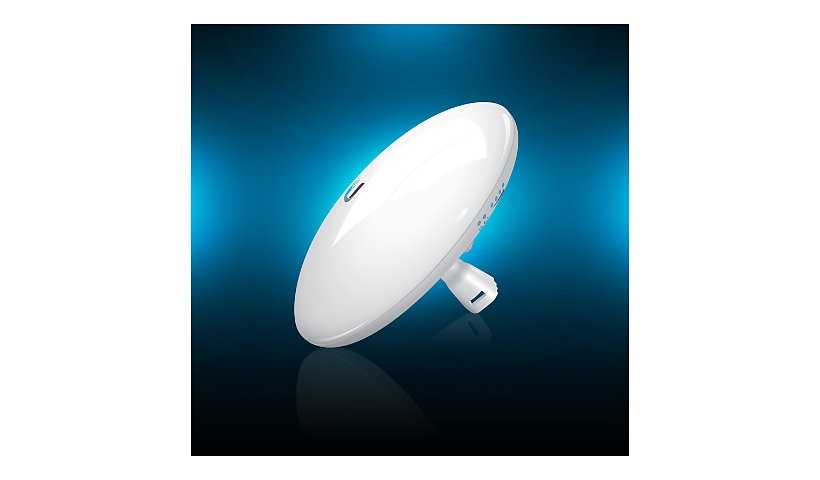

The Ubiquiti NanoBeam 5AC Gen2 is a compact 5 GHz airMAX ac CPE or bridge with a 19 dBi directional antenna, a Gigabit PoE port, about 8.5 W draw and a -40 to 176 °F range, and includes a pole mount. This is a bridge radio, not a standalone antenna.
Key Features
- 5 GHz airMAX ac
- 19 dBi directional
- Gigabit RJ-45, PoE
- About 8.5 W
- -40 to 176 °F
- Pole mount included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti NanoBeam AC GEN2
Model: NBE-5AC-GEN2
Product Type: Wireless bridge
Device Type: Power injector
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax ac
Network Standard: DHCP
Wireless LAN: AirMax ac
Antenna Form Factor: Internal
Antenna Gain Level: 19 DBi
Frequency Band: 5 GHZ
Directivity: Directional
Features: 24KV ESD Protector, Manageable, Management Wi-Fi radio, Pole mountable, Wall mountable
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 8.5 watt
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 74KC
Processors Installed: 1
Clock Speed: 720 megahertz
RAM Installed: 128 megabyte
Memory Technology: DDR2 SDRAM
Flash Memory Installed: 8 megabyte
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: LAN, Power, WLAN
Dimensions and Weight
Height: 7.4 inch
Width: 7.4 inch
Depth: 4.9 inch
Weight: 18.69 ounce
Included Items
Included Accessories: Pole mount
Certifications and Listing
Compliant Standards: ETSI 300 019, FCC, IC, IEC 60068-2-11, IEC 60068-2-14, IEC 60068-2-6, MIL-STD 810G 506.5, MIL-STD 810G 509.5, RoHS
Warranty
Service Activation: No
