Product Information

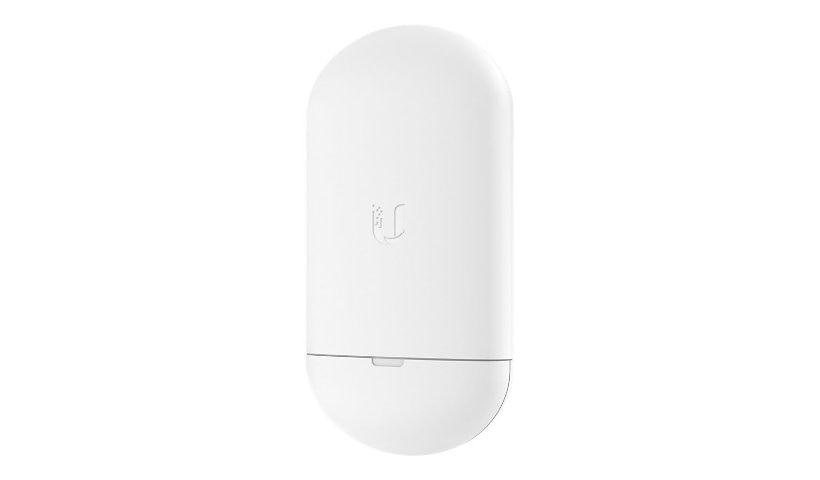

This is a five pack of Ubiquiti NanoStation Loco 5AC units, compact 5 GHz airMAX ac radios with a 13 dBi antenna, used as outdoor client (CPE) links. Each has a Gigabit passive PoE port, 64 MB RAM, about 7 W draw and a -40 to 158 °F range, and includes a pole mount. These are fixed wireless radios, not Wi-Fi access points.
Key Features
- Pack of 5 radios
- 5 GHz airMAX ac
- 13 dBi antenna
- Gigabit RJ-45, passive PoE
- -40 to 158 °F
- Pole mount included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti NanoStation loco
Model: 5AC
Product Type: Wireless access point
Packaged Quantity: 5
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax ac
Encryption: WPA2
Wireless LAN: AirMax ac
Network Band: 5 GHz
Antenna Form Factor: Internal
Antenna Gain Level: 13 DBi
Features: 24KV ESD Protector (air-gap discharge), 24KV ESD Protector (contact discharge), Distance Control (ACK Timeout), Dual-linear polarization, Manageable, Pole mountable, Quality of Service (QoS), Surge protection, UV stabilized enclosure
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): Passive PoE
Power
Power Consumption Operational: 7 watt
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 74KC
Processors Installed: 1
Clock Speed: 560 megahertz
RAM Installed: 64 megabyte
Memory Technology: DDR2 SDRAM
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: Power
Dimensions and Weight
Height: 7 inch
Width: 3.1 inch
Depth: 2.3 inch
Weight: 6.35 ounce
Included Items
Included Accessories: Pole mount
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
