Product Information

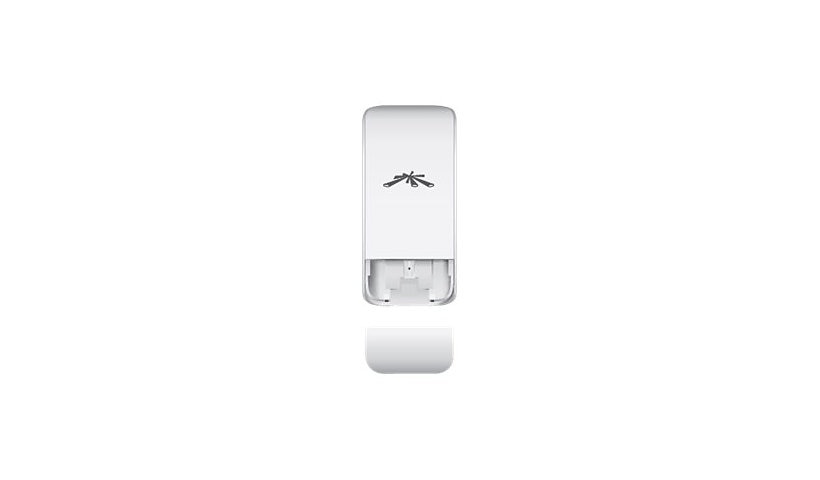

The Ubiquiti NanoStation Loco M5 is a compact 5 GHz airMAX radio with a 13 dBi antenna, used as an outdoor client or bridge link. It has a 10/100 PoE port, about 5.5 W draw and a -22 to 167 °F range, and includes a PoE injector and pole mount. This is a fixed wireless radio, not a Wi-Fi access point.
Key Features
- 5 GHz airMAX
- 13 dBi antenna
- 10/100 RJ-45, PoE
- About 5.5 W
- -22 to 167 °F
- PoE injector and pole mount included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti NanoStation loco
Model: M5
Product Type: Wireless bridge
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax
Wireless LAN: AirMax
Network Band: 5 GHz
Antenna Form Factor: Internal
Antenna Gain Level: 13 DBi
Operating System Edition: AirOS
Features: Pole mountable, Quality of Service (QoS)
Connectivity
Interface Provided: 1 x 100Base-TX (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 5.5 watt
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 24KC
Processors Installed: 1
Clock Speed: 400 megahertz
RAM Installed: 32 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 8 megabyte
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 6.4 inch
Width: 3.1 inch
Depth: 1.2 inch
Weight: 6.35 ounce
Included Items
Included Accessories: PoE injector, Pole mount
Certifications and Listing
Compliant Standards: IEEE 802.3af
Warranty
Service Activation: No
