Product Information

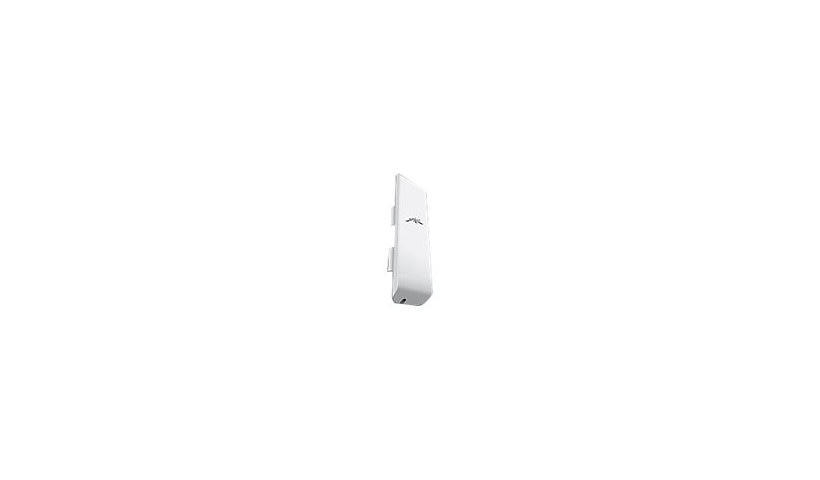

The Ubiquiti NanoStation M2 (NSM2) is a 2.4 GHz airMAX MIMO radio for indoor or outdoor use with a built-in dual polarity 11 dBi antenna, a radio rather than a standalone antenna. It is rated for real outdoor throughput up to 150 Mbps and a range up to 15 km. Inside are a 400 MHz Atheros MIPS 24KC processor, 32 MB SDRAM and 8 MB flash running airOS with QoS. It has two 10/100 RJ-45 ports, one powered by PoE, and comes with a pole mount and a power injector with a US plug.
Key Features
- Radio with built-in antenna
- 2.4 GHz airMAX MIMO
- 11 dBi dual polarity
- Up to 150 Mbps, 15 km
- Two 10/100 ports, PoE
- Pole mount and injector
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti NanoStation
Model: M2
Product Type: Wireless access point
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax
Wireless LAN: AirMax
Network Band: 2.4 GHz
Antenna Form Factor: Internal
Antenna Gain Level: 11 DBi
Operating System Edition: AirOS
Features: MIMO technology, Pole mountable, Quality of Service (QoS)
Connectivity
Interface Provided: 2 x 100Base-TX - RJ-45
Power Over Ethernet (PoE): PoE
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 24KC
Processors Installed: 1
Clock Speed: 400 megahertz
RAM Installed: 32 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 8 megabyte
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95%
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 115.7 inch
Width: 3.1 inch
Depth: 1.2 inch
Weight: 14.11 ounce
Included Items
Included Accessories: Pole mount
Certifications and Listing
Compliant Standards #2: ETSI 300 019, FCC Part 15.247, IC, RoHS, RSS-210
Compliant Standards: IEEE 802.3af
Compliant Standards: ETSI 300 019, FCC Part 15.247, IC, RoHS, RSS-210
