Product Information

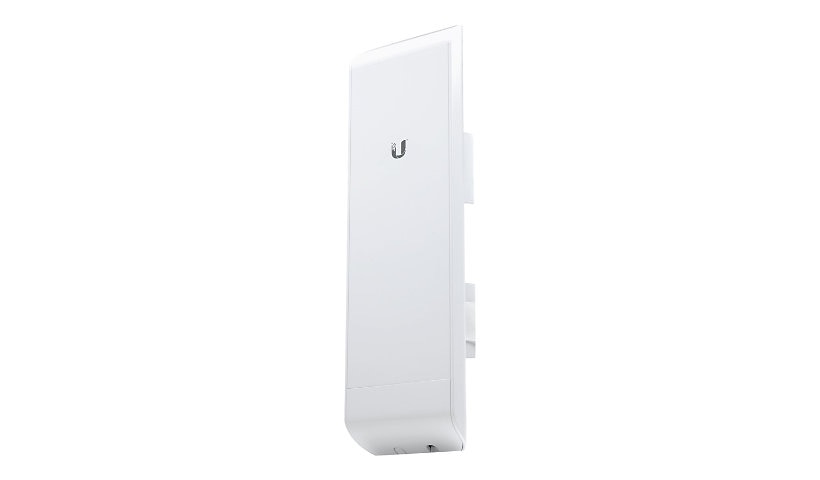

The Ubiquiti NanoStation M5 is a 5 GHz airMAX TDMA radio with a 16 dBi internal antenna for point to point or point to multipoint links over long distances. It has two 10/100 ports, with the second able to pass PoE to a camera, and includes a 24 V PoE adapter and pole mount. This is a bridge radio, not a standalone antenna.
Key Features
- 5 GHz airMAX radio
- 16 dBi internal antenna
- 2 x 10/100 RJ-45
- Secondary port PoE pass-through
- 24 V PoE adapter included
- -22 to 167 °F
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti NanoStation
Model: M5
Product Type: Wireless bridge
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax
Data Transfer Rate: 150 MBps
Wireless LAN: AirMax
Network Band: 5 GHz
Antenna Form Factor: Internal
Antenna Gain Level: 16 DBi
Operating System Edition: AirOS
Features: MIMO technology, Pole mountable, Quality of Service (QoS)
Connectivity
Interface Provided: 2 x 100Base-TX (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 24KC
Processors Installed: 1
Clock Speed: 400 megahertz
RAM Installed: 32 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 8 megabyte
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95%
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Dimensions and Weight
Width: 3.1 inch
Depth: 1.2 inch
Weight: 14.11 ounce
Included Items
Included Accessories: Pole mount
Certifications and Listing
Compliant Standards: IEEE 802.3af
Compliant Standards: ETSI 300 019, FCC Part 15.247, IC, RoHS, RSS-210
