Product Information

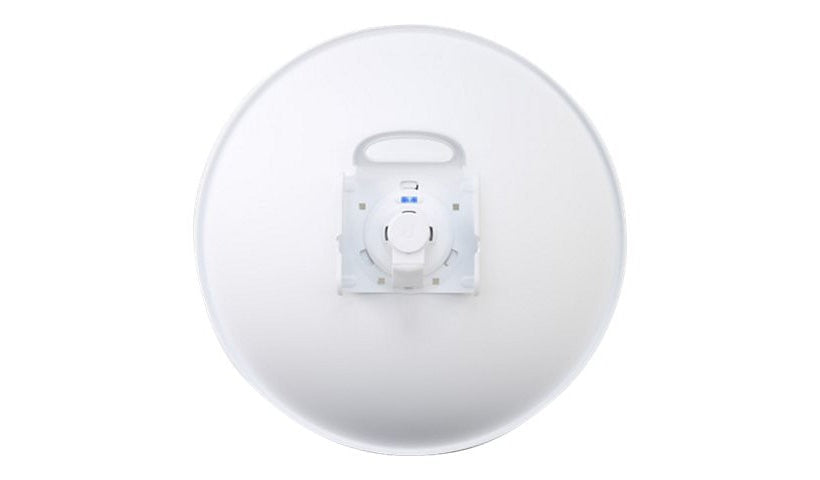

The Ubiquiti PBE-5AC-GEN2-5-US is a PowerBeam 5AC Gen2 5 GHz airMAX ac bridge radio rather than a standalone antenna, using a 25 dBi dish reflector for high performance CPE and point to point links. It is rated for 450 Mbps throughput and up to 16 miles, with an Atheros MIPS 74KC processor, 64 MB of RAM, one gigabit PoE port, 24 kV ESD protection and about 8.5 W draw. A pole mount is included. The quick specs describe this part as a pack of 5, so please confirm the quantity.
Key Features
- Bridge radio with dish
- 5 GHz airMAX ac, 25 dBi
- 450 Mbps, up to 16 miles
- Gigabit PoE port, 8.5 W
- Pole mount included
- Listed as pack of 5
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti PowerBeam ac
Model: PBE-5AC-GEN2
Product Type: Wireless bridge
Packaged Quantity: 5
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax ac, Ethernet, Fast Ethernet, Gigabit Ethernet
Wireless LAN: AirMax ac
Network Device: Throughput: 450 Mbps
Antennas: 1
Antenna Gain Level: 25 DBi
Max Range Open Space: 16 miles
Frequency Band: 5 GHZ
Features: 24KV ESD Protector, Pole mountable
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 8.5 watt
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 74KC
Processors Installed: 1
RAM Installed: 64 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: LAN, Power
Dimensions and Weight
Height: 16.5 inch
Width: 16.5 inch
Depth: 9.1 inch
Weight: 4.89 lbs
Included Items
Included Accessories: Pole mount
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
