Product Information

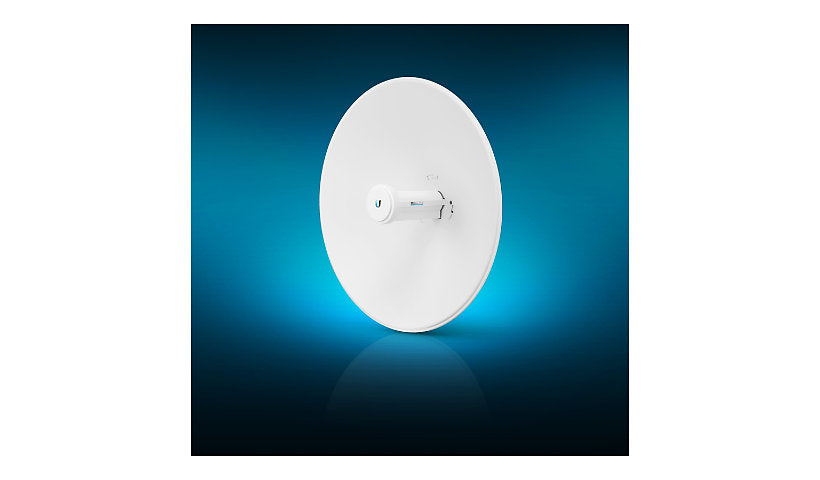

The Ubiquiti PowerBeam 5AC Gen2 is a 5 GHz airMAX ac point to point bridge with a 25 dBi dish antenna, a bridge radio rather than a standalone antenna. InnerFeed puts the radio in the feed horn to avoid cable loss, and it is rated around 450 Mbps at up to 16 miles. It runs airOS 8, has a Gigabit PoE port, 24 kV ESD protection and about 8.5 W draw, and includes a pole mount.
Key Features
- 5 GHz airMAX ac bridge
- 25 dBi dish antenna
- About 450 Mbps
- Up to 16 miles
- Gigabit PoE port
- Pole mount included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti PowerBeam ac
Model: PBE-5AC-GEN2
Product Type: Wireless bridge
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax ac, Ethernet, Fast Ethernet, Gigabit Ethernet
Wireless LAN: AirMax ac
Network Device: Throughput: 450 Mbps
Antennas: 1
Antenna Gain Level: 25 DBi
Max Range Open Space: 16 miles
Frequency Band: 5 GHZ
Operating System Edition: AirOS 8
Features: 24KV ESD Protector, Pole mountable
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 8.5 watt
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 74KC
Processors Installed: 1
RAM Installed: 64 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: LAN, Power
Dimensions and Weight
Height: 16.5 inch
Width: 16.5 inch
Depth: 9.1 inch
Weight: 4.89 lbs
Included Items
Included Accessories: Pole mount
Warranty
Service Activation: No
