Product Information

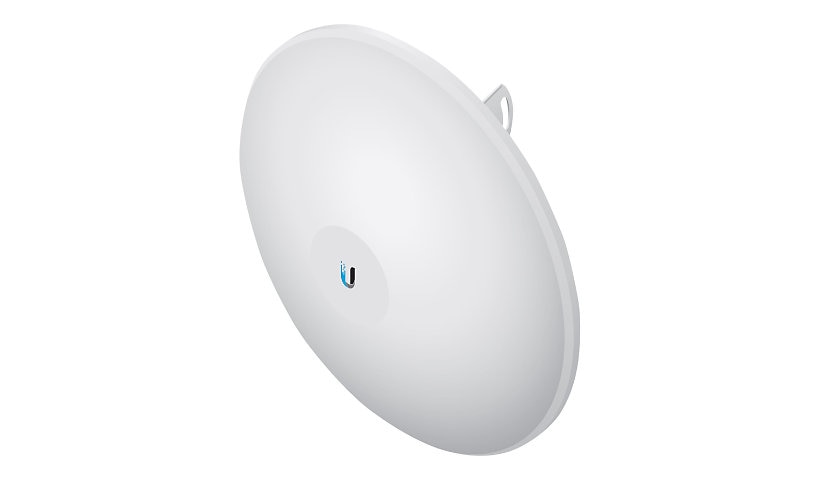

The Ubiquiti PowerBeam PBE-5AC-500 is a 5 GHz airMAX CPE bridge radio with a 27 dBi dish reflector, rather than a standalone antenna, rated for links up to 16 miles. It has a 720 MHz Atheros MIPS 74KC and 8 MB flash running airOS, one gigabit PoE port, 24 kV ESD protection and about 8.5 W draw, with a pole mount included. The spec lists 128 GB of RAM, which looks like it should be 128 MB, and the title mixes M5 and 5AC naming, so please confirm.
Key Features
- Bridge radio with dish
- 5 GHz airMAX
- 27 dBi gain
- Up to 16 miles
- Gigabit PoE, 8.5 W
- Pole mount included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti PowerBeam M5
Model: PBE-5AC-500
Product Type: Wireless bridge
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: TCP/IP
Wireless LAN: AirMax
Antenna Gain Level: 27 DBi
Max Range Open Space: 16 miles
Frequency Band: 5 GHZ
Operating System Edition: AirOS
Features: 24KV ESD Protector, Pole mountable, Power over Ethernet (PoE)
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 8.5 watt
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 74KC
Processors Installed: 1
Clock Speed: 720 megahertz
RAM Installed: 128 GB
Memory Technology: DDR2 SDRAM
Flash Memory Installed: 8 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: LAN, Power, WLAN
Dimensions and Weight
Height: 20.7 inch
Width: 20.7 inch
Depth: 12.4 inch
Weight: 6.94 lbs
Included Items
Included Accessories: Pole mount
Warranty
Service Activation: No
