Product Information

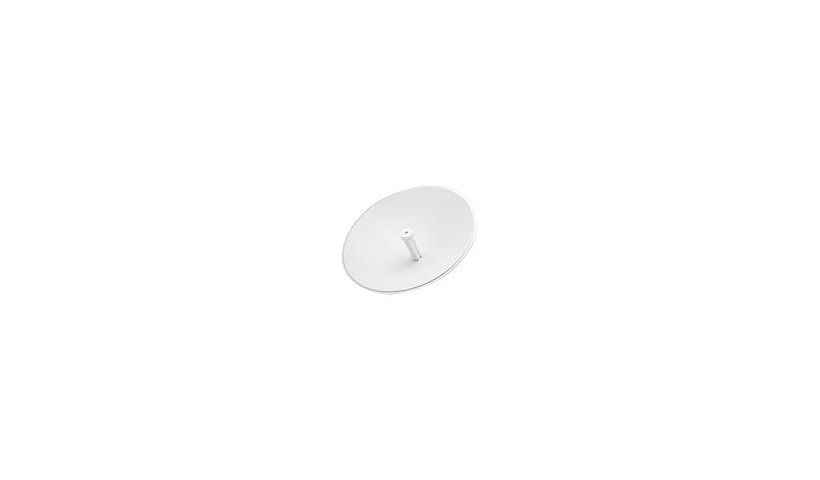

The Ubiquiti PowerBeam PBE-5AC-620-US is a 5 GHz airMAX ac bridge radio with a 29 dBi dish reflector, rather than a standalone antenna, for high performance CPE links up to 19 miles. It has a 720 MHz Atheros MIPS 74KC, 128 MB RAM and 8 MB flash running airOS, one gigabit PoE port, 24 kV ESD protection and about 8.5 W draw. A pole mount is included.
Key Features
- Bridge radio with dish
- 5 GHz airMAX ac
- 29 dBi gain
- Up to 19 miles
- Gigabit PoE, 8.5 W
- Pole mount included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti PowerBeam ac
Model: PBE-5AC-620
Product Type: Wireless bridge
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax ac
Wireless LAN: AirMax ac
Antenna Gain Level: 29 DBi
Max Range Open Space: 19 miles
Frequency Band: 5 GHZ
Directivity: Directional
Operating System Edition: AirOS
Features: 24KV ESD Protector, Pole mountable
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 8.5 watt
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 74KC
Processors Installed: 1
Clock Speed: 720 megahertz
RAM Installed: 128 megabyte
Memory Technology: SDRAM
Flash Memory Installed: 8 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: LAN, Power
Dimensions and Weight
Height: 24.4 inch
Width: 24.4 inch
Depth: 15.2 inch
Weight: 14.11 lbs
Included Items
Included Accessories: Pole mount
Warranty
Service Activation: No
