Product Information

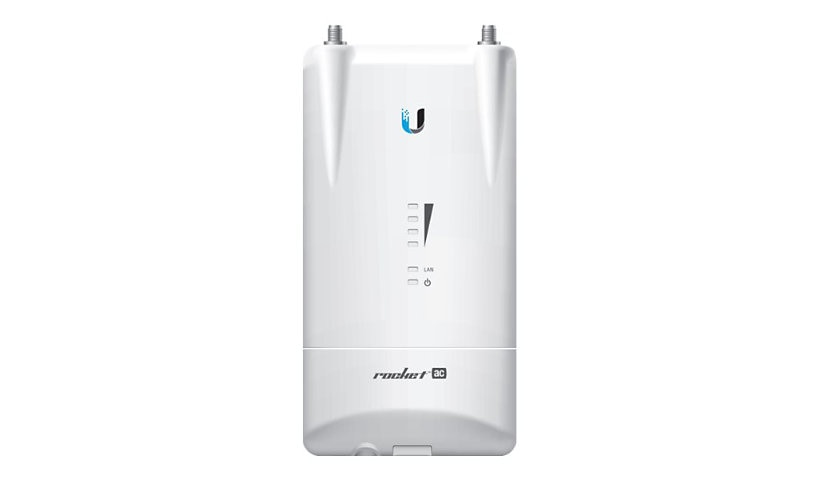

The Ubiquiti Rocket 5AC Lite (R5AC-LITE-US) is a 5 GHz airMAX ac base radio for point to point links, not an antenna, with two RP-SMA ports to connect an external antenna. It has a 720 MHz Atheros MIPS 74KC, 128 MB DDR2 and 16 MB flash running airOS with routing, NAT, VLAN, QoS, SNMP and SSH. It has one gigabit PoE port, 24 kV ESD protection, AES and WPA2 encryption, and draws about 8.5 W in an outdoor housing.
Key Features
- Base radio, not an antenna
- 5 GHz airMAX ac
- 2 RP-SMA antenna ports
- Gigabit PoE, 8.5 W
- Routing, VLAN, QoS
- Outdoor housing
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti Rocket ac
Model: R5AC-LITE
Product Type: Wireless access point
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax ac
Network Standard: DHCP
Remote Management: SNMP, SSH, Telnet
Encryption: AES, WPA2
Line Coding Format: 16 QAM, 256 QAM, 64 QAM, BPSK, QPSK
Wireless LAN: AirMax ac
Frequency Band: 5 GHZ
Operating System Edition: AirOS
Features: 24KV ESD Protector, NAT support, Quality of Service (QoS), Routing, VLAN support, Web server, Wi-Fi Multimedia (WMM) support, Wireless bridge mode
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45, 2 x antenna - RP-SMA
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 8.5 watt
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 74KC
Processors Installed: 1
Clock Speed: 720 megahertz
RAM Installed: 128 megabyte
Memory Technology: DDR2 SDRAM
Flash Memory Installed: 16 megabyte
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: LAN, Power, Signal strength
Dimensions and Weight
Height: 6.4 inch
Width: 3.3 inch
Depth: 1.3 inch
Weight: 8.82 ounce
Certifications and Listing
Compliant Standards: ETSI 300 019, FCC, IC, RoHS
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
