Product Information

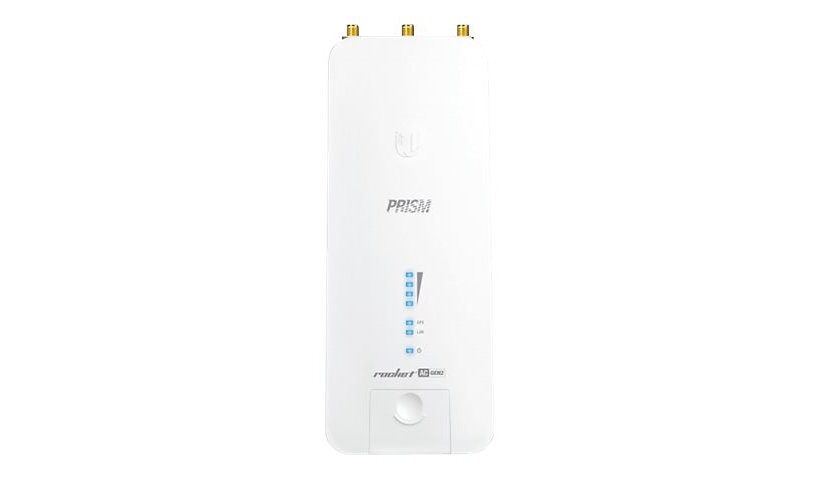

The Ubiquiti Rocket Prism 5AC Gen 2 is a 5 GHz airMAX ac base station radio with airPrism filtering for better selectivity in busy RF environments. It has two RP-SMA antenna ports, a Gigabit PoE port, GPS, 128 MB RAM, about 9.5 W draw and a -40 to 176 °F range, and includes a PoE injector. This is a radio, not an antenna; antennas are sold separately.
Key Features
- 5 GHz airMAX ac radio
- airPrism filtering
- 2 x RP-SMA antenna ports
- Gigabit RJ-45, PoE
- GPS sync
- PoE injector included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti Rocket PRISM
Model: RP-5AC-GEN2
Product Type: Wireless access point
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: AirMax ac
Network Standard: DHCP, TCP/IP
Remote Management: CLI, SNMP, SSH, Telnet
Encryption: AES, WPA2
Data Transfer Rate: 500 MBps
Line Coding Format: 16 QAM, 256 QAM, 64 QAM, BPSK, QPSK
Wireless LAN: AirMax ac
Frequency Band: 5 GHZ
Operating System Edition: AirOS
Features: 24KV ESD Protector, airPrism technology, NAT support, Quality of Service (QoS), Routing, VLAN support, Web server, Wi-Fi Multimedia (WMM) support, Wireless bridge mode, WISP mode
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45, 2 x antenna - RP-SMA
Power Over Ethernet (PoE): PoE
Power
Power Consumption Operational: 9.5 watt
Memory and Processor
Processor Brand: Atheros
Processor Type: MIPS 74KC
Processors Installed: 1
RAM Installed: 128 megabyte
Memory Technology: DDR2 SDRAM
Total Processor Supported: 1
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Ruggedized Design: Outdoor
Physical Characteristics
Form Factor: External
Status Indicators: GPS, LAN, Power, Signal strength
Dimensions and Weight
Height: 9.1 inch
Width: 3.5 inch
Depth: 1.6 inch
Weight: 14.11 ounce
Included Items
Included Accessories: PoE injector
Warranty
Service Activation: No
