Product Information

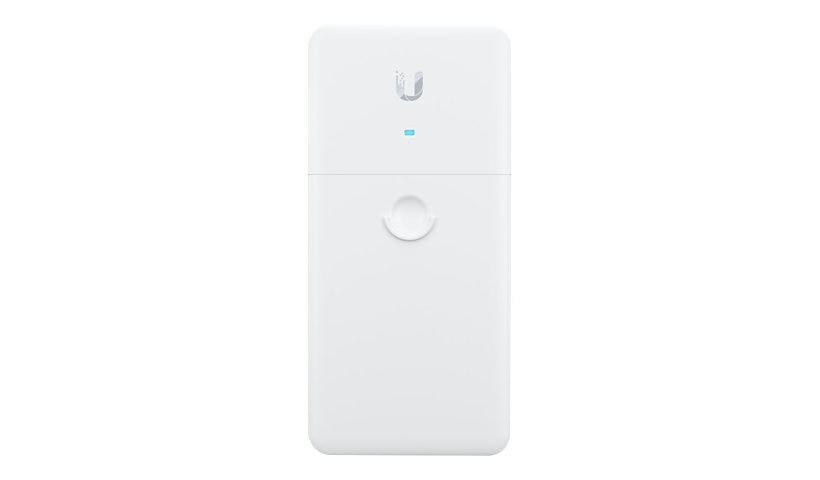

The Ubiquiti UACC-LRE is a long range Gigabit Ethernet repeater, not a network card. It is powered by PoE or PoE+ and passes PoE through to the next device, extending a 10/100/1000 link up to 0.6 miles. It has two RJ-45 ports, a weatherproof UV stabilized outdoor enclosure and 30 kV ESD protection, drawing about 1.5 W.
Key Features
- Repeater, not a network card
- Extends links to 0.6 miles
- PoE+ powered, pass-through
- 2 x Gigabit RJ-45 ports
- Weatherproof enclosure
- 30 kV ESD protection
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti
Model: UACC-LRE
Product Type: Repeater
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Cable Type: Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Max Transfer Distance: 0.6 miles
Features: 30KV ESD Protector (air-gap discharge), 30KV ESD Protector (contact discharge), Outdoor enclosure, PoE Pass Through, UV stabilized enclosure, Weatherproof
Connectivity
Interface Provided: 2 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 female
Power Over Ethernet (PoE): PoE+
Left Connector SD Type: RJ-45
Right Connector Type (SD): RJ-45
Power
Power Consumption Operational: 1.5 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 176 degree Fahrenheit
Operating Humidity: 10 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity/speed, PoE, System
Dimensions and Weight
Height: 1.5 inch
Width: 7.7 inch
Depth: 3.7 inch
Weight: 12.34 ounce
Certifications and Listing
Compliant Standards #2: FCC, IC, IPX5
Compliant Standards: IEEE 802.3af, IEEE 802.3at
Compliant Standards: FCC, IC, IPX5
Warranty
Service Activation: No
