Product Information

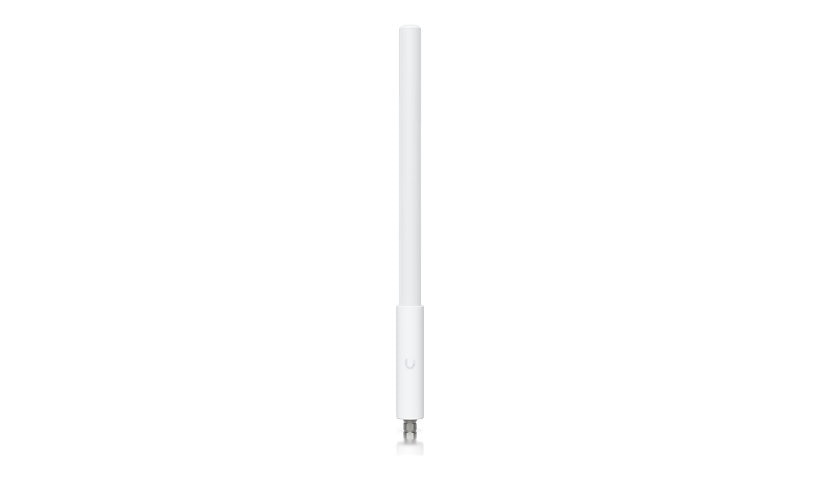

The Ubiquiti UACC-USL-ANT-HG is a high gain outdoor omni antenna for the UniFi SuperLink gateway (USL-Gateway), with 7 dBi at 860 to 930 MHz and 4 dBi at 2.4 to 2.48 GHz. It is weatherproof, rated for 125 mph (200 km/h) winds and made of glass fiber, polycarbonate and stainless steel. It mounts on a pole and has an RP-N female connector with a 1 m (3.3 ft) cable included.
Key Features
- High gain omni antenna
- 860 to 930 MHz, 7 dBi
- 2.4 GHz, 4 dBi
- For UniFi SuperLink
- Pole mount, weatherproof
- RP-N, 1 m cable
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Product Type: Antenna
Category of Accessory: Antennas
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 4 dBi (for 2.4 - 2.48 GHz), 7 dBi (for 860 - 930 MHz)
Antenna Placement: Outdoor, Pole mount
Antenna Compatibility: Bluetooth
Frequency Range: 2.4 - 2.48 GHz, 860 - 930 MHz
Directivity: Omni-directional
Features: 25.4 N at 200 km hour wind survival, Weatherproof, Wind load 125 mph (200 km/h)
Connectivity
Antenna Cable Length: 3.3 ft
Connector Provided: 1 x RP-N female
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Materials: Glass fiber, Polycarbonate, Stainless steel
Dimensions and Weight
Height: 18.5 inch
Width: 1.7 inch
Depth: 1.3 inch
Weight: 9.7 ounce
Included Items
Package Content: Antenna cable (1 m)
Certifications and Listing
Compliant Standards: IP67
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
