Product Information

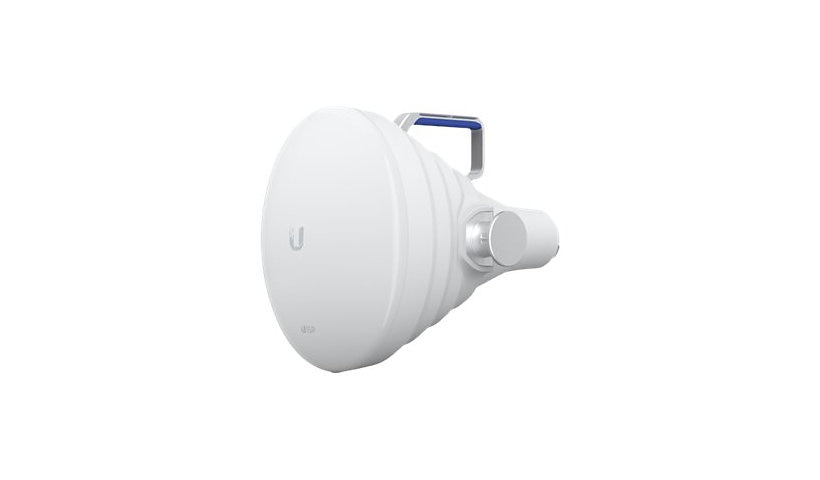

The Ubiquiti UISP-Horn is an outdoor 30 degree point to multipoint horn antenna for 5.15 to 6.875 GHz with 19.5 dBi gain. Its high isolation and low back lobes suit busy sites and co-located radios. It has dual linear polarization, VSWR under 2:1, an aluminum and UV coated polycarbonate build and IPX6 weather sealing. Side latches give a secure snap-in fit for the Rocket Prism AC, LTU Rocket or airFiber 5XHD, and a mounting kit is included.
Key Features
- 5 GHz horn antenna
- 30 degree beam, 19.5 dBi
- 5.15 to 6.875 GHz
- Dual linear polarization
- IPX6, UV coated
- Snap-in radio latches
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UISP
Model: Horn
Packaged Quantity: 1
Color Category: White
Network and Communication
Antenna Gain: 19.5 dBi
Antenna Placement: Outdoor
Frequency Range: 5.15 - 6.875 GHz
Antenna Type: Antenna
Directivity: Directional
Technical Information
Antenna Form Type: Horn
Antenna Features: Anti-UV coating, Dual linear polarization, IPX6, VSWR < 2:1
Physical Characteristics
Materials: Aluminum, UV coated polycarbonate
Dimensions and Weight
Height: 11.1 inch
Width: 8.8 inch
Depth: 15 inch
Included Items
Accessories Included: Mounting Kit
Warranty
Service Activation: No
Not sure this antenna fits your hardware? Send us your access point or radio model and the DatorPro team will confirm the connector and compatibility before you order.
