Product Information

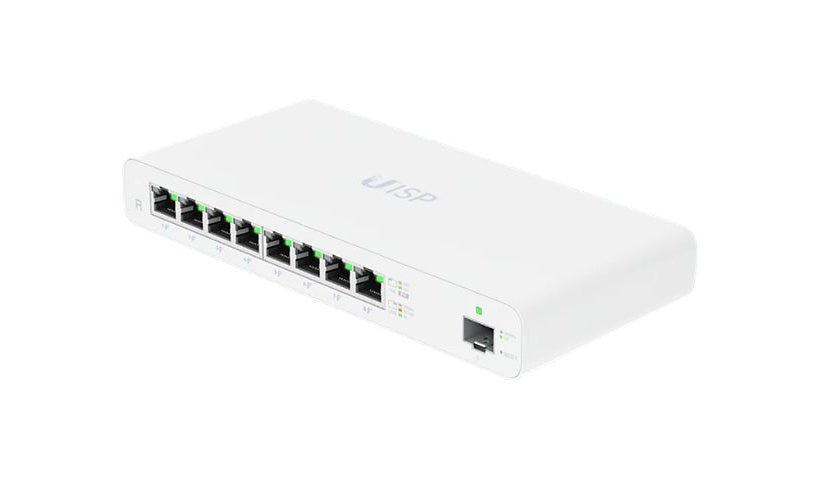

The Ubiquiti UISP-R is a fanless wired router with eight Gigabit PoE RJ-45 ports and a Gigabit SFP port for a fiber uplink. It is wall mountable, set up over Bluetooth with the UISP mobile app, and runs on a 880 MHz MIPS processor with 512 MB of RAM. No Wi-Fi is built in.
Key Features
- 8 x Gigabit PoE RJ-45
- 1 x Gigabit SFP
- Fanless, wall mountable
- Bluetooth setup with UISP app
- 880 MHz MIPS, 512 MB RAM and flash
- 24 to 28 V DC, 10 W, no Wi-Fi
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UISP
Model: UISP-R
Product Type: Router
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Integrated Switch: 8-port switch
Features: 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), Bluetooth management, Fanless
Connectivity
Interface Provided: LAN: 1 x 1000Base-X - SFP (mini-GBIC), LAN: 8 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45
Power
Device Type: External power adapter
Required Voltage: DC 24 - 28 volt
Power Consumption Operational: 10 watt
Memory and Processor
Processor Brand: MIPS
Processor Type: MIPS 1004Kc
Processors Installed: 1
Clock Speed: 880 megahertz
RAM Installed: 512 megabyte
Memory Technology: DDR3 SDRAM
Flash Memory Installed: 512 megabyte
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, PoE, Port status
Dimensions and Weight
Height: 1.1 inch
Width: 8.3 inch
Depth: 3.7 inch
Weight: 21.16 ounce
Certifications and Listing
Compliant Standards: FCC, IC
Warranty
Service Activation: No
Not sure this router fits your home or office? Send us your internet type, coverage area and device count, and the DatorPro team will help you pick the right model before you order.
