Product Information

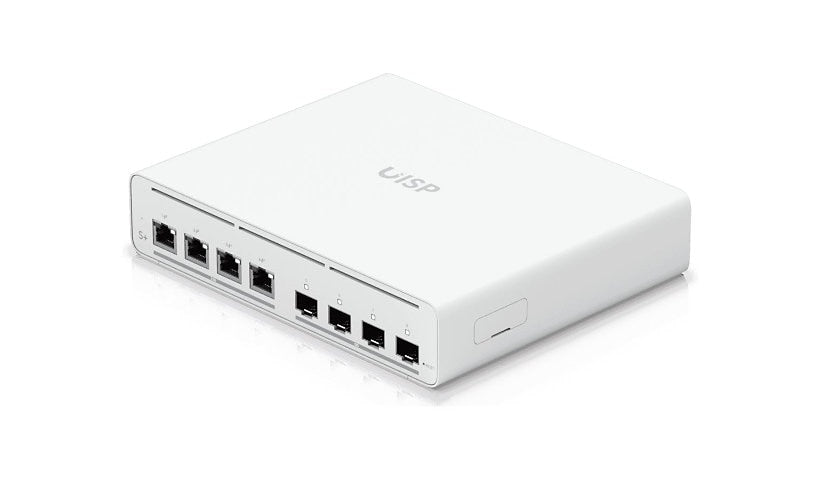

Ubiquiti's UISP Switch Plus is a managed switch with four 2.5GbE ports that output 27 V passive PoE and four 10G SFP+ ports. It offers 160 W of total PoE, 100 Gbps of switching capacity and a Power TransPort input for DC redundancy, and it can be managed locally or through the UISP app.
Key Features
- 4 x 2.5GbE RJ-45 passive PoE ports, 27 V
- 4 x 10G SFP+ ports
- 160 W total PoE
- 100 Gbps switching, 74.41 Mpps
- DC redundancy input
- Desktop, wall or rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: UISP Plus
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: 10 Gigabit Ethernet / 2.5 Gigabit Ethernet
Manageable: Yes
Performance: Forwarding rate: 74.41 Mpps, Non-blocking switching throughput: 50 Gbps, Switching capacity: 100 Gbps
Features: 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), Bluetooth management, DHCP snooping, Dual core CPU, Polycarbonate enclosure, Port isolation, Reset button, Speed limiting, Steel housing
Connectivity
Ports: 8
Port Quantity: 4
Port Type: 2.5GBase-T
Ports (2nd) Quantity: 4
Ports Type (2nd): 10Gb Ethernet SFP+
Interface Provided: 4 x 10Gbit LAN SFP+, 4 x 2.5GBase-T RJ-45 PoE - 40 W
Power Over Ethernet (PoE): Passive PoE
Power
Device Type: External power adapter
PoE Budget: 160 watt
Memory and Processor
Processor Brand: ARM
Clock Speed: 1.4 GHZ
RAM Installed: 1 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable, Wall-mountable
Height (Rack Units): 1
Status Indicators: Link/activity/speed, Status
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 8.3 inch
Depth: 6.7 inch
Weight: 3.86 lbs
Certifications and Listing
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
