Product Information

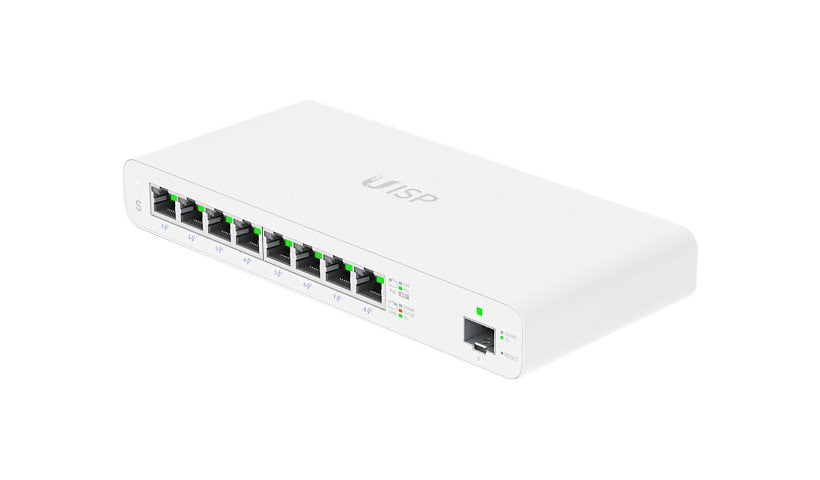

Ubiquiti's UISP Switch (UISP-S) is a desktop switch with eight Gigabit PoE ports at up to 30 W and one Gigabit SFP port. It shares a 110 W PoE budget, provides 18 Gbps of switching capacity and runs from a 27 V DC external power adapter.
Key Features
- 8 x Gigabit RJ-45 PoE ports, 30 W
- 1 x Gigabit SFP port
- 110 W PoE budget
- 18 Gbps switching, 13.392 Mpps
- Desktop, external 27 V DC adapter
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UISP
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: White
Network and Communication
Switching Type: Gigabit Ethernet
Performance: Forwarding rate: 13.392 Mpps, Non-blocking switching throughput: 9 Gbps, Switching capacity: 18 Gbps
Features: 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge)
Connectivity
Ports: 9
Port Quantity: 8
Port Type: 10/100/1000 (PoE)
Ports (2nd) Quantity: 1
Ports Type (2nd): Gigabit SFP
Interface Provided: 1 x Gigabit LAN SFP, 8 x 1000Base-T RJ-45 PoE - 30 W
Power Over Ethernet (PoE): PoE
Power
Device Type: External power adapter
Power Consumption Operational: 8 watt
PoE Budget: 110 watt
Provided Voltage: DC 27 volt
Output Current: 4.4 ampere
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Link/activity, PoE, Speed, Status
Dimensions and Weight
Height: 1.1 inch
Width: 8.3 inch
Depth: 3.7 inch
Weight: 21.51 ounce
Certifications and Listing
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
