Product Information

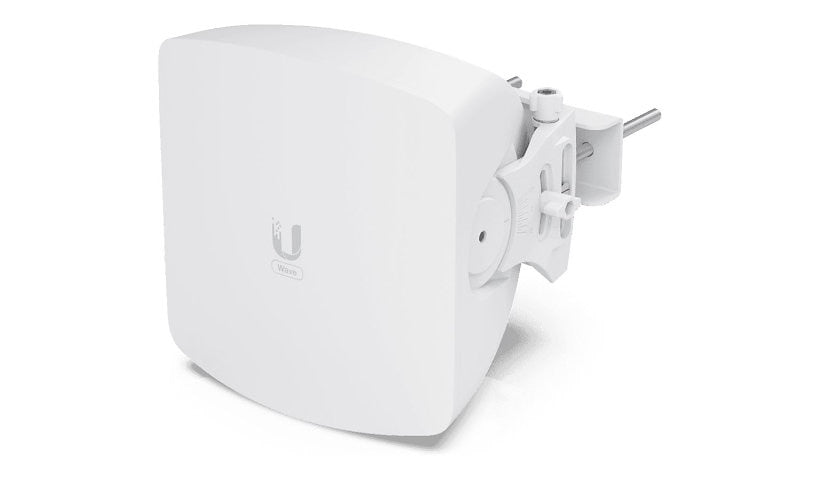

Ubiquiti's UISP Wave AP is a 60 GHz point-to-multipoint base station with a 5 GHz backup radio, 30° sector coverage, up to 5.4 Gbps and 15 client capacity. It reaches about 5 miles, has a 10G SFP+ WAN and a 2.5G RJ-45 port, built in GPS and Bluetooth, and is IPX6 rated.
Key Features
- 60 GHz PtMP with 5 GHz backup
- Up to 5.4 Gbps, 15 clients
- 30° sector, range up to 5 miles
- 10G SFP+ WAN, 2.5G RJ-45
- GPS and Bluetooth management
- IPX6, -40 to 140 °F
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti
Model: UISP Wave
Product Type: Wireless access point
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11ax (Wi-Fi 6)
Remote Management: SNMP
Encryption: AES, WPA2-PSK
Data Transfer Rate: 5.4 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, QPSK
Capacity: Clients per access point: 24
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 5 GHz
Max Range Open Space: 5 miles
Frequency Band: 60 GHZ
Features: 30° sector coverage, 5 GHz radio backup, Aluminum alloy enclosure, Bluetooth management, Bridge mode, NTP client, Ping watchdog, Point-to-Multipoint (PtMP) link mode, UV stabilized polycarbonate enclosure, Wave Technology
Connectivity
Interface Provided: 1 x 10 Gigabit Ethernet - SFP+ (WAN), 1 x 100M/1G/2.5 Gigabit Ethernet - RJ-45
Power Over Ethernet (PoE): Passive PoE
Memory and Processor
Clock Speed: 1.4 GHZ
RAM Installed: 512 megabyte
Memory Technology: DDR3L SDRAM
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Pole mountable
Status Indicators: Ethernet link/activity, GPS, Power
Built-in Devices: GPS
Dimensions and Weight
Height: 8.3 inch
Width: 8.1 inch
Depth: 7.4 inch
Weight: 5.07 lbs
Certifications and Listing
Compliant Standards: FCC, IC, IPX6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
