Product Information

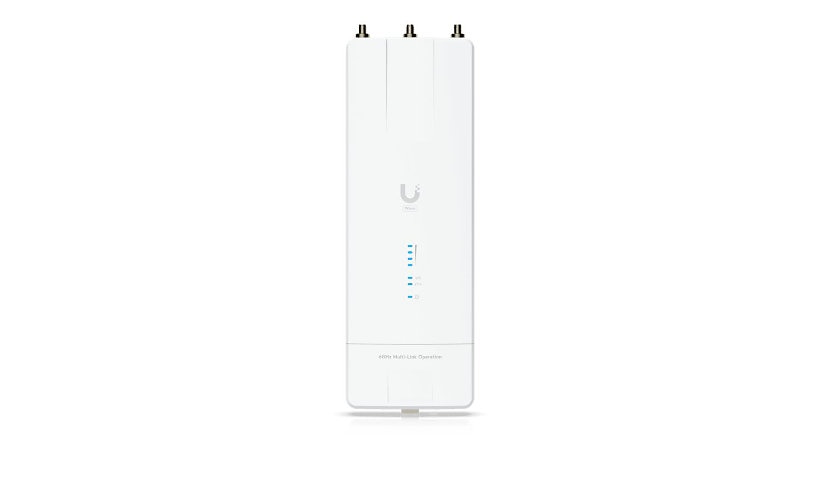

Ubiquiti's UISP Wave MLO6 is a Wi-Fi 7 point-to-point bridge using Multi-Link Operation across 5 and 6 GHz for up to 8 Gbps and links up to 62 miles (100 km). It has 10G SFP+ and 10G RJ-45 ports, GPS, Bluetooth management, RP-SMA antenna connectors and a power injector. This is a wireless bridge, not an access point.
Key Features
- Wi-Fi 7 PtP bridge, MLO
- Up to 8 Gbps, 5 and 6 GHz
- Range up to 62 miles
- 10G SFP+ and 10G RJ-45
- GPS, 2 x RP-SMA
- -40 to 140 °F, pole mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UISP
Model: Wave MLO6
Product Type: Wireless bridge
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: 10 Gigabit Ethernet, Bluetooth, IEEE 802.11be (Wi-Fi 7)
Encryption: AES, WPA3-PSK
Data Transfer Rate: 8 GBps
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 4096 QAM, 64 QAM, BPSK, QPSK
Wireless LAN: Bluetooth
Network Band: 5 GHz, 6 GHz
Network Device: Throughput: 8 Gbps
Antennas: 3
Antenna Form Factor: External
Max Range Open Space: 62 miles
Features: 2x2 MIMO technology, Bridge mode, Multi-Link Operation (MLO), Point-to-Point (PtP) link mode, Polycarbonate/aluminum alloy housing, Reset button
Connectivity
Interface Provided: 1 x 10 Gigabit Ethernet - SFP+, 1 x 10Gb Ethernet - RJ-45, 1 x GPS/GNSS, 2 x antenna - RP-SMA
Power Over Ethernet (PoE): PoE
Power
Required Voltage: DC 54 volt
Power Supplies Installed: 1
Memory and Processor
Processor Type: Quad Core
Processor Number: IPQ5322
Processors Installed: 1
Clock Speed: 1.5 GHZ
RAM Installed: 1 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Pole mountable
Status Indicators: GPS, LAN, Power, Signal
Built-in Devices: Bluetooth adapter
Dimensions and Weight
Height: 9.8 inch
Width: 3.2 inch
Depth: 1.9 inch
Weight: 20.28 ounce
Certifications and Listing
Compliant Standards: IEEE 802.11be
Compliant Standards: FCC, IC, IPX6, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
