Product Information

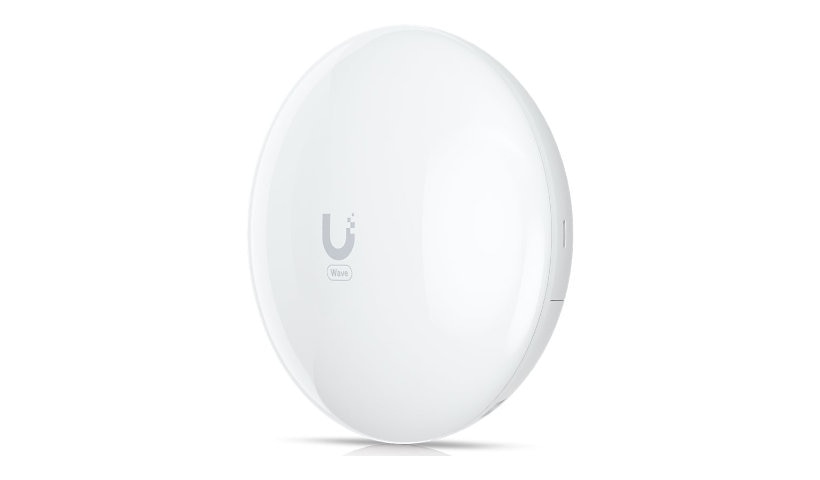

The Ubiquiti Wave Pico is a compact 60 GHz client radio with a 5 GHz backup link, a 27.7 dBi antenna and up to 2 Gbps over about 1 mile. It supports PtP and PtMP setups and is powered by 48 V passive PoE. This is a fixed wireless radio, not a Wi-Fi access point.
Key Features
- 60 GHz with 5 GHz backup
- Up to 2 Gbps
- About 1 mile range
- 27.7 dBi antenna
- PtP or PtMP
- 48 V passive PoE
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti
Model: Wave Pico
Product Type: Wireless bridge
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6)
Remote Management: SNMP
Encryption: AES, WPA2-PSK
Line Coding Format: 1024 QAM, 16 QAM, 256 QAM, 64 QAM, BPSK, QPSK
Wireless LAN: 802.11a/b/g/n/ac/ax
Network Band: 5 GHz
Network Device: Channel bandwidth: 20 / 40 / 80 MHz, Throughput: 2 Gbps
Antenna Form Factor: Internal
Antenna Gain Level: 27.7 DBi
Max Range Open Space: 1 miles
Frequency Band: 60 GHZ
Features: 200 km/h wind survival, Bluetooth management, Bridge mode, Linear polarization, NTP client, Ping watchdog, Point-to-Multipoint (PtMP) link mode, Point-to-Point (PtP) link mode, Reset button, Router mode, UISP dashboard, UV stabilized polycarbonate enclosure, Vertical polarization, Wave Technology, Weatherproof
Connectivity
Interface Provided: 1 x network / power - RJ-45
Power Over Ethernet (PoE): Passive PoE
Power
Required Voltage: DC 48 volt
Memory and Processor
Processor Brand: ARM
Processor Number: Cortex-A53
Processors Installed: 1
Clock Speed: 1 GHZ
RAM Installed: 512 megabyte
Memory Technology: DDR3L SDRAM
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Pole mountable
Status Indicators: Ethernet link/activity, Power
Dimensions and Weight
Height: 6 inch
Width: 6 inch
Depth: 2.2 inch
Weight: 12.24 ounce
Certifications and Listing
Compliant Standards: FCC, IC, IPX6
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
