Product Information

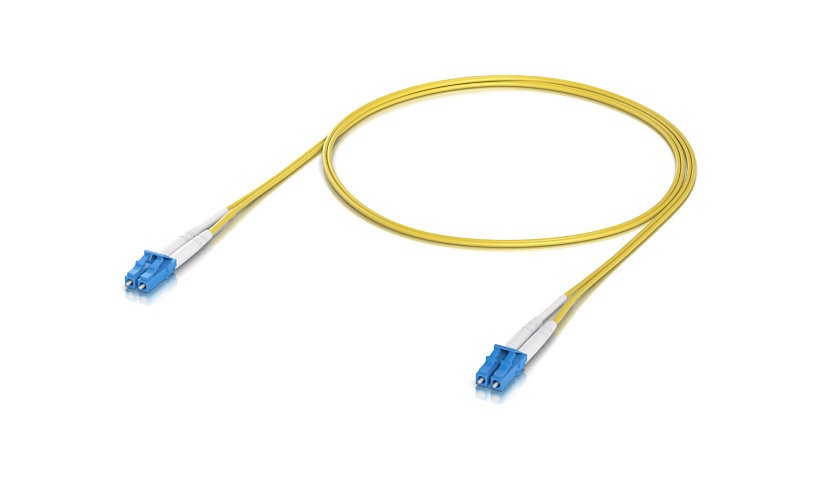

This UniFi single mode duplex fiber patch cable has LC/UPC connectors on both ends and runs at 1310/1550 nm for dependable data transfer. Insertion loss is 0.3 dB or less and return loss is 50 dB or more, which keeps the signal clean across a wide range of network uses.
The halogen-free LSZH (Low Smoke Zero Halogen) jacket adds safety indoors where fire is a concern while staying flexible and durable. The cable is rated for -40°C to 75°C. Sold as a pack of 50.
Specifications:
Brand: Ubiquiti
Manufacturer part number: UACC-OFC-S2-LULU-1M-50
Product line: Ubiquiti UniFi
Cable type: Patch cable
Fiber mode: Singlemode
Strand configuration: Duplex
Connector, end A: 2 x LC/UPC single mode (male)
Connector, end B: 2 x LC/UPC single mode (male)
Jacket: Low Smoke Zero Halogen (LSZH)
Features: Halogen-free, Indoor, <= 0.3 dB insertion loss, = 0.1 dB repeatability, >= 50 dB return loss, Wavelength of 1310/1550 nm
Length: 1 m (3.3 ft)
Diameter: 0.1 inch
Color: Yellow
Operating temperature: -40°F to 167°F
Quantity in package: 50
Standards and compliance: OS2
