Product Information

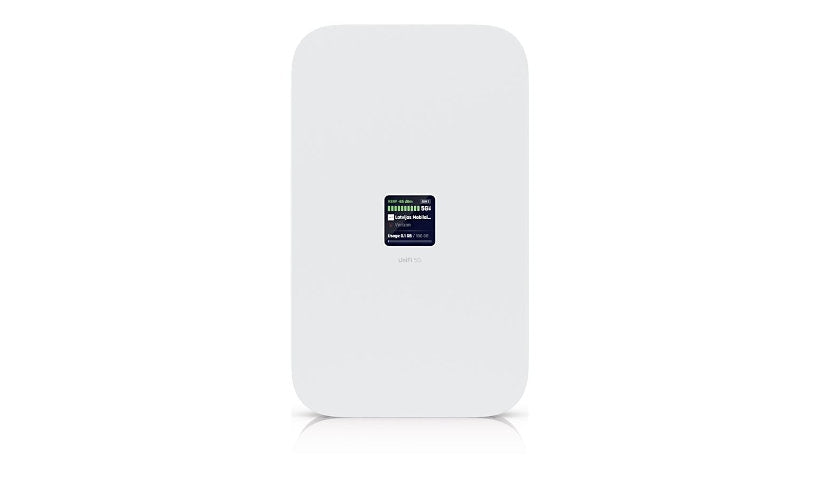

The Ubiquiti UniFi 5G Max is a 5G and LTE cellular modem for UniFi networks, powered over a single 2.5GbE PoE port. It supports eSIM plus Nano-SIM, has a 1.3 inch touchscreen and four internal antennas, and mounts on a desk, wall or window. This is a cellular modem, not a Wi-Fi router.
Key Features
- 5G NR, LTE and UMTS, up to 3.4 Gbps
- Dual SIM (eSIM + Nano-SIM)
- 1 x 2.5GbE PoE port
- 1.3 inch touchscreen, 4 internal antennas
- Desk, wall and window mounts included
- Requires UniFi Network 10.0.162 or later
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: 5G Max
Product Type: Network / wireless cellular modem combo
Packaged Quantity: 1
Color Category: White
Network and Communication
Features #2: Desk mountable, Wall mountable, Window mountable
Connectivity Technology: Wired, Wireless
High-Speed Communication Standard: LTE
Bus: 2.5 Gigabit Ethernet
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Modem Transmission Data Rate: 3.4 GBps
Cellular Data Connectivity Technology: 5G NR, LTE, UMTS
Cellular Generation: 5G
Cellular Band: UMTS B1/B2/B4/B5/B8/B19 / LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B34/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 5G n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/n75/n76/n77/n78/n79
SIM Card Supported: Dual SIM (eSIM+nano-SIM)
SIM Slots: 2
Ethernet Technology: Wireless
Antennas: 4
Antenna Form Factor: Internal
Operating System Required: UniFi Network 10.0.162 or later
Features: Built-in touchscreen display, HPUE (High Power User Equipment) support, LED status indicator, Policy-based WAN, Polycarbonate/aluminum alloy housing, Power over Ethernet (PoE), Reset button, Silicone rubber mount
Features: Desk mountable, Wall mountable, Window mountable
Edition: Standard
Connectivity
Interface Provided: 1 x 2.5GBase-T (PoE) - RJ-45
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Built-in Devices: 1.3" touch screen display
Dimensions and Weight
Height: 7.1 inch
Width: 4.3 inch
Depth: 1.3 inch
Weight: 14.46 ounce
Included Items
Included Accessories: Mounting kit, Stand, Wall mount, Window mount
Certifications and Listing
Compliant Standards: GCF, IK04, PTCRB
Warranty
Service Activation: Yes
