Product Information

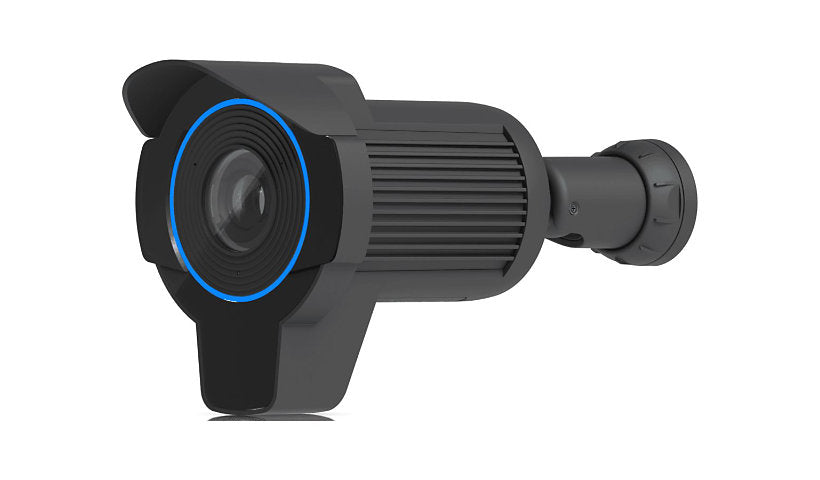

The Ubiquiti UniFi AI LPR is an outdoor 4K bullet camera built for license plate detection, with an 8 MP 1/1.8 inch sensor at 30 fps and a 4.1 to 12.3 mm lens (35 to 109.9 degree view). It has IR up to 49 ft, a built in mic and microSD, connects by Gigabit Ethernet and runs on PoE+ or 42.5 to 57 V DC. Weatherproof, mounting kit included.
Key Features
- 4K, 8 MP at 30 fps
- License plate detection
- 4.1 to 12.3 mm lens
- IR up to 49 ft
- Gigabit, PoE+
- Weatherproof, mic
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: AI LPR
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Brightness control, Color control, Contrast control, Exposure control, License plate detection, Masking, Sharpness control, Text overlay, White balance
Software Type: UniFi Protect
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Ports: LAN - RJ-45
Memory and Processor
Memory Cards Supported: microSD Card
Technical Information
Angular Field of View (D, Max, Degree): 127.7
Angular Field of View (H, Max, Degree): 109.9
Angular Field of View (V, Max, Degree): 60
Infrared Distance: 49 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 40
Max Focal Length: 12.3 millimetre
Angular Field of View (H, Min, Degree): 35
Angular Field of View (V, Min, Degree): 19.8
Total Pixels: 8,000,000 pixels
Video Modes: 4K
Image Sensor Size: 1/1.8"
Image Sensor Type: CMOS
Lens Aperture: F/1.53 -3.3
Min Focal Length: 4.1 millimetre
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 3840 x 2160
Max Frame Rate: 30 frames per second
Focal Length Control: Fixed focal
Video Input: Color
Audio Support: Yes
Audio Support Features: Built-in microphone
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Protection: Weatherproof
Form Factor: Bullet
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 6 inch
Width: 5.1 inch
Depth: 11.9 inch
Included Items
Included Accessories: Mounting kit
