Product Information

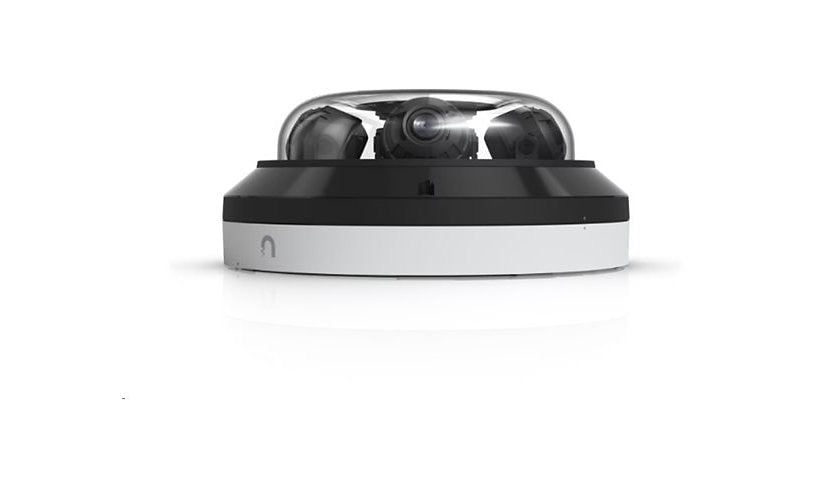

This white Ubiquiti UniFi AI Multi Sensor 4 dome offers 32 MP across its sensors with up to 3840 x 2160 at 30 fps, 3.18 to 7.42 mm lenses, HDR and IR up to 66 ft. Face recognition and microSD are supported, and it runs on Gigabit PoE++ or 42.5 to 57 V DC at 34.6 W. Weatherproof.
Key Features
- 32 MP multi sensor
- Up to 4K at 30 fps
- 3.18 to 7.42 mm lenses
- HDR, IR 66 ft
- Face recognition, microSD
- PoE++, white
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: AI Multi Sensor 4
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: 16:9 aspect ratio, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Aluminum alloy/polycarbonate housing, Brightness control, Color control, Contrast control, Exposure control, Face Recognition, HDR, IR-cut filter, License Plate Recognition, Masking, Noise reduction by motion, Reset button, Sharpness control, Smart Detection, Text overlay, White balance
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Ports: LAN/power - RJ-45
Power
Low Voltage Power: PoE ++
Required Voltage: DC 42.5 - 57 volt
Power Consumption Operational: 34.6 watt
Memory and Processor
Memory Cards Supported: microSD Card
Technical Information
Angular Field of View (D, Max, Degree): 130.8
Angular Field of View (H, Max, Degree): 108.8
Angular Field of View (V, Max, Degree): 57.6
Infrared Distance: 66 ft
Infrared LEDs: Yes
Angular Field of View (D, Min, Degree): 49.1
Max Focal Length: 7.42 millimetre
Optical Zoom: 2.33
Angular Field of View (H, Min, Degree): 42.8
Angular Field of View (V, Min, Degree): 24.1
Total Pixels: 32,000,000 pixels
Image Sensor Size: 1/2.8"
Lens Aperture: F/1.8-2.8
Min Focal Length: 3.18 millimetre
Sensor Size (metric): 9.1 mm (1/2.8")
Digital Video Capture Resolution: 3840 x 2160
Max Frame Rate: 30 frames per second
Video Input: Color
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -4 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Physical Characteristics
Protection: Weatherproof
Form Factor: Dome
Camera Mechanical Design: Fixed
Dimensions and Weight
Height: 4.1 inch
Width: 10 inch
Depth: 10 inch
Weight: 5.29 lbs
Included Items
Included Accessories: Mounting hardware
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
