Product Information

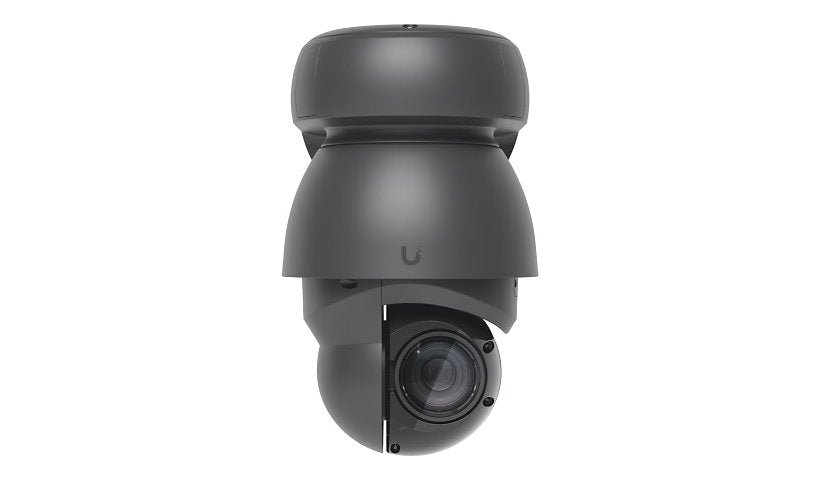

The Ubiquiti UniFi AI PTZ Industrial is an outdoor 4K PTZ turret with an 8 MP 1/1.8 inch sensor at 30 fps, 22x optical zoom, 360 degree pan and IR up to 328 ft. It supports AI people, vehicle and animal detection and microSD, connects by Gigabit and runs on PoE++ or 42.5 to 57 V DC. Mounting kit included. UVC-AI-PTZ-B.
Key Features
- 4K, 8 MP PTZ
- 22x optical zoom
- 360 degree pan
- IR up to 328 ft
- AI detection, microSD
- PoE++, Gigabit
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: AI PTZ Industrial
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Features: 16:9 aspect ratio, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Aluminum alloy/polycarbonate housing, Aluminum/polycarbonate housing, Animal detection, ARM Cortex A-53 processor, Brightness control, Color control, Contrast control, Exposure control, Face Recognition, IR-cut filter, License Plate Recognition, People Detection, PoE++ support, Reset button, Sharpness control, Text overlay, Vehicle Detection, White balance
Connectivity
Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-T
Ports: LAN/power - RJ-45
Power
Low Voltage Power: DC 42.5 - 57 V / PoE ++
Memory and Processor
Memory Cards Supported: microSD Card
Technical Information
Angular Field of View (H, Max, Degree): 64
Angular Field of View (V, Max, Degree): 37
Infrared Distance: 328 ft
Infrared LEDs: Yes
Optical Zoom: 22
Tilt: 120
Panning Range (degree): 360
Angular Field of View (H, Min, Degree): 3
Angular Field of View (V, Min, Degree): 2
Total Pixels: 8,000,000 pixels
Video Modes: 4K
Image Sensor Size: 1/1.8"
Sensor Size (metric): 14.1 mm (1/1.8")
Digital Video Capture Resolution: 3840 x 2160
Max Frame Rate: 30 frames per second
Video Input: Color
Touchscreen: No
Max Video Resolution: 3840 x 2160
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Physical Characteristics
Indoor/Outdoor: Outdoor
Form Factor: Turret
Camera Mechanical Design: Pan / tilt / zoom
Dimensions and Weight
Height: 13.4 inch
Width: 8.1 inch
Depth: 8.8 inch
Weight: 8.38 lbs
Included Items
Included Accessories: Mounting kit
Not sure this camera fits your setup? Send us the model of your NVR, VMS or current cameras and how you plan to mount and power it, and the DatorPro team will help you confirm compatibility before you order.
