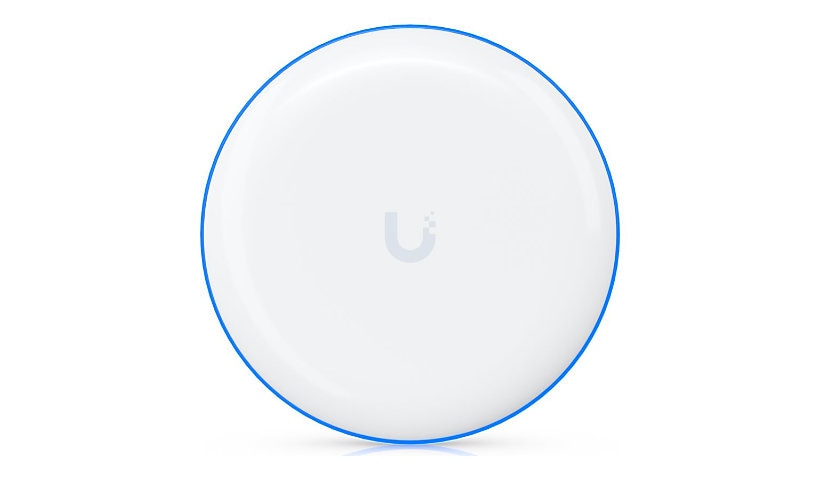

Product Information
The UniFi Building Bridge is a 60 GHz (802.11ad) wireless bridge with a 5 GHz backup link, rated up to 1.7 Gbps over about 1640 ft. It has a Gigabit PoE port, built in GPS and a -40 to 158 °F range, and ships with a ball joint mount, lock ring and metal strap. This listing is a single unit, and it is a bridge radio, not an antenna.
Key Features
- 60 GHz 802.11ad + 5 GHz backup
- Up to 1.7 Gbps
- Up to about 1640 ft
- Gigabit RJ-45, PoE
- Built-in GPS
- Single unit, wall or pole mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Building Bridge
Product Type: Wireless bridge
Device Type: Power injector
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad (WiGig), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data Transfer Rate: 1.7 GBps
Wireless LAN: 802.11a/b/g/n/ac, 802.11ad (WiGig)
Network Band: 5 GHz, 60 GHz
Max Range Open Space: 1640 ft
Features: 24KV ESD Protector (air-gap discharge), 24KV ESD Protector (contact discharge), Bluetooth (BLE) clients support, Bluetooth management, Deep Packet Inspection (DPI), Manageable, Pole mountable, VLAN Tagging, Wall mountable
Connectivity
Interface Provided: 1 x 1000Base-T (PoE) - RJ-45
Power Over Ethernet (PoE): PoE
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall / pole mountable
Built-in Devices: GPS
Dimensions and Weight
Height: 5.5 inch
Width: 5.5 inch
Depth: 3.5 inch
Weight: 13.26 ounce
Included Items
Included Accessories: Ball joint mount, Lock ring, Metal strap
Certifications and Listing
Compliant Standards: FCC, IC
Compliant Standards: IEEE 802.11ad, IEEE 802.3af
