Product Information

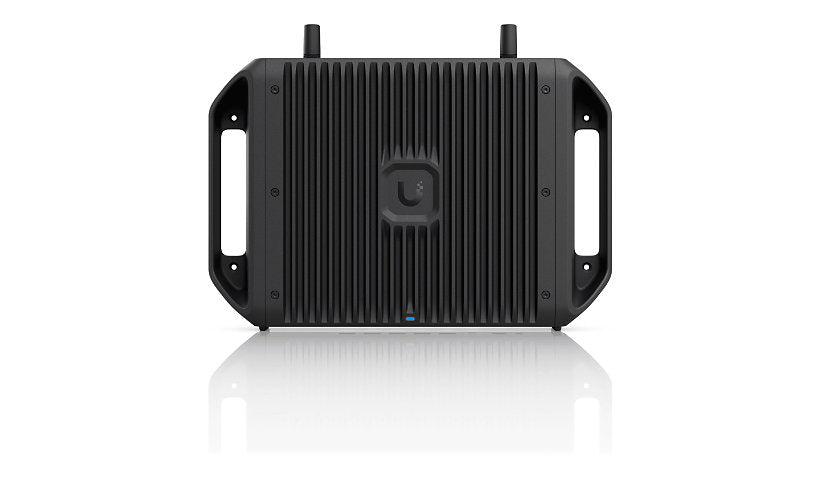

The Ubiquiti UCG-INDUSTRIAL-US is a fanless industrial UniFi cloud gateway with built-in Wi-Fi 7 and Bluetooth, not an antenna. It has a quad core 2.2 GHz ARM CPU, 3 GB flash with microSD, IPS throughput up to 5 Gbps and handles 500+ users and 50+ managed devices. Ports include 10G RJ-45 WAN, 10G SFP+ WAN, 10G SFP+, 2.5G WAN, a 10G PoE++ port and four 2.5G PoE ports with a 270 W PoE budget. It offers a layer 7 firewall, IDS/IPS, content filtering, ad blocking and RADIUS, runs on 100 to 240 V AC, wall mounts and comes with a stand.
Key Features
- Gateway, not an antenna
- Wi-Fi 7 and Bluetooth
- 10G WAN, SFP+ ports
- 270 W PoE budget
- IDS/IPS, layer 7 firewall
- Fanless, wall mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Product Type: Gateway
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Authentication Method: RADIUS, RADSEC
Capacity: Concurrent users: 500+, Managed cameras: 28, Managed devices: 50+, Managed hubs: 50
Wireless LAN: 802.11a/b/g/n/ac/ax/be, Bluetooth
Network Band: 2.4 GHz, 5 GHz
Network Device: IPS throughput: 5 Gbps, Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 4.3 Gbps
Antennas: 2
Antenna Form Factor: Internal
Features: 270W PoE power budget, Ad blocking, Application-aware layer 7 firewall, Content filtering, DPI & traffic identification, Fanless, Firewall protection, IGMP proxy, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), QoS, Reset button, Zone-based firewall advanced filtering
Connectivity
Ports: 9
Interface Provided: 1 x 10 Gigabit Ethernet - RJ-45 (WAN), 1 x 10 Gigabit Ethernet - SFP+, 1 x 10 Gigabit Ethernet - SFP+ (WAN), 1 x 100M/1G/2.5/5/10 Gigabit Ethernet (PoE++) - RJ-45, 1 x 2.5 GBase-T - RJ-45 (WAN), 2 x 2.5 GBase-T (PoE+) - RJ-45, 2 x 2.5 GBase-T (PoE+++) - RJ-45
Power Over Ethernet (PoE): PoE++
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Memory and Processor
Processor Brand: ARM
Processor Type: Quad Core
Clock Speed: 2.2 GHZ
Flash Memory Installed: 3 GB
Flash Memory Cards Supported: microSD
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall Mountable
Status Indicators: Ethernet link/activity, microSD, SFP+, SIM status, System
Dimensions and Weight
Height: 1.7 inch
Width: 12.1 inch
Depth: 8 inch
Weight: 5.29 lbs
Included Items
Included Accessories: Stand
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Warranty
Service Activation: No
