Product Information

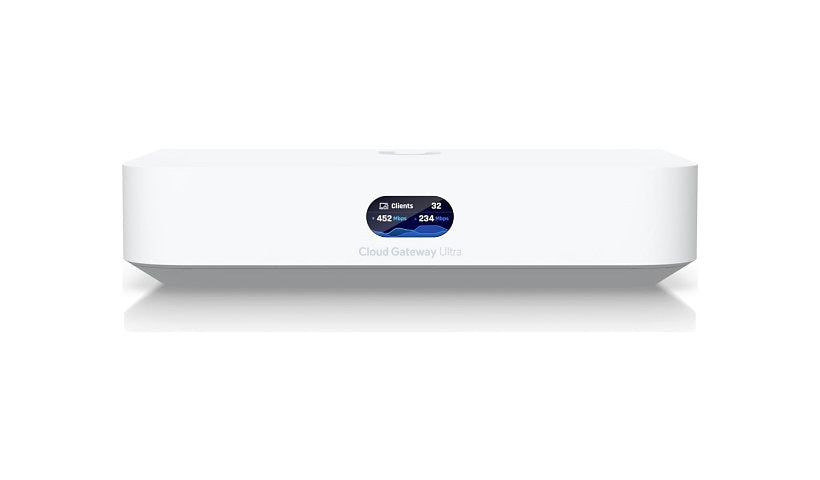

The Ubiquiti UniFi Cloud Gateway Ultra is a compact desktop gateway that runs UniFi Network for full stack management. It routes at 1 Gbps with IDS/IPS, has one 2.5GbE WAN and four GbE LAN ports, and supports multi-WAN load balancing, WireGuard and OpenVPN. A small LCM screen shows status. This is a wired gateway without built in Wi-Fi.
Key Features
- 1 x 2.5GbE WAN, 4 x GbE LAN
- 1 Gbps routing with IDS/IPS
- Runs UniFi Network, manages 30+ devices and 300+ clients
- Multi-WAN load balancing, WireGuard, OpenVPN, IPSec
- Quad core ARM A53, 3 GB RAM, 16 GB flash
- 0.96 inch status display, 6.2 W, power adapter included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti
Model: Ultra
Product Type: Gateway
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec, IPv6, OpenVPN, WireGuard
Network Device: IDS/IPS throughput: 1 Gbps
Features: Ad filtering, Application-aware firewall rules, Content filtering, Country filtering, DHCP relay, DHCP server, Domain filter, Full stateful firewall, IGMP proxy, Internet quality, L2TP VPN client, Multi-WAN Load Balance, OpenVPN client, OpenVPN server, Outage reporting, Policy-based WAN, Polycarbonate enclosure, QoS, Reset button, SD-WAN support, VLAN segmentation, VPN routing
Connectivity
Interface Provided: 1 x 1/2.5GBase-T - RJ-45 (WAN), 1 x USB (power only) - USB-C, 4 x 1000Base-T - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Power Consumption Operational: 6.2 watt
Memory and Processor
Processor Brand: ARM
Processor Number: A53
Processors Installed: 1
Clock Speed: 1.5 GHZ
RAM Installed: 3 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 16 GB
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Desktop
Status Indicators: Link/activity
Built-in Devices: 0.96-inch LCM display
Dimensions and Weight
Height: 1.2 inch
Width: 5.6 inch
Depth: 5 inch
Weight: 18.34 ounce
Included Items
Included Accessories: Power adapter
Warranty
Service Activation: No
