Product Information

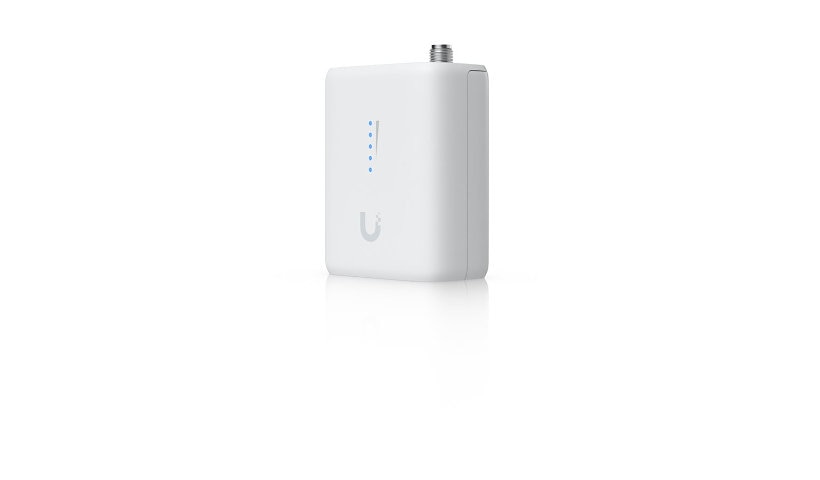

The UniFi Device Bridge IoT links a wired device with a 10/100 port to a UniFi Wi-Fi network over 2.4 GHz, with internal and detachable external antennas. It runs on 5 to 30 V DC via USB-C, mounts on a wall or DIN rail and includes a wall mounting kit. This is a bridge, not an antenna.
Key Features
- 2.4 GHz Wi-Fi bridge
- 10/100 RJ-45
- Internal + detachable antenna
- 5 to 30 V DC, USB-C
- Wall or DIN rail mount
- Bridge, not an antenna
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Device Bridge IoT
Product Type: Bridge
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Encryption: WPA2-AES
Data Transfer Rate: 300 MBps
Capacity: Spatial streams: 2
Wireless LAN: 802.11a/b/g/n
Broadband Transmission Technology: 2.4 GHz
Antenna Form Factor: External detachable and internal
Features: 2x2 MIMO technology, Compact, LED status indicators, Polycarbonate enclosure, Reset button
Connectivity
Interface Provided: Antenna: 1 x RP-SMA, LAN: 1 x 100Base-TX - RJ-45, USB: 1 x 24 pin USB-C (power only)
Power
Device Type: External power adapter (not included)
Required Voltage: DC 5 - 30 volt
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: Signal, Status
Dimensions and Weight
Height: 3.5 inch
Width: 1.8 inch
Depth: 1 inch
Weight: 1.87 ounce
Included Items
Included Accessories: Power cable (US), Wall mounting kit
Certifications and Listing
Compliant Standards: FCC, IC, NDAA
