Product Information

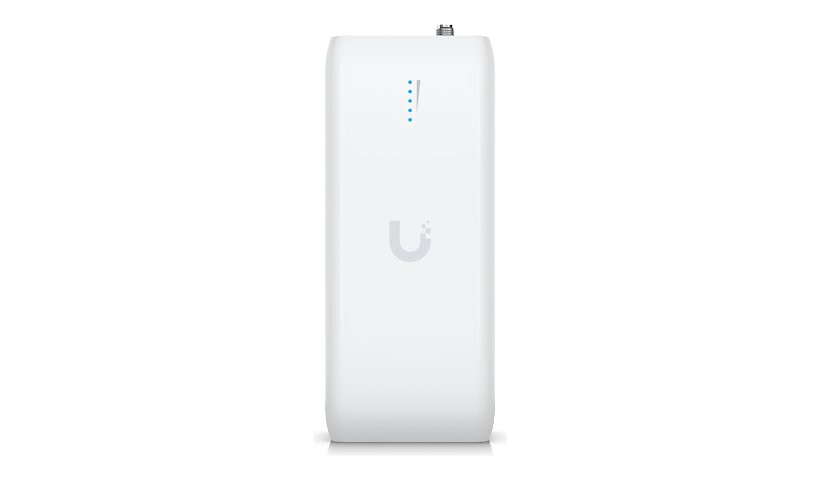

The UniFi Device Bridge Pro Sector is a 5 GHz wireless bridge with a 17 dBi sector antenna and a range of up to 3 miles. It has a Gigabit port, runs on passive PoE, is IPX6 rated, NDAA compliant and mounts on a pole. This is a wireless bridge, not a Wi-Fi access point.
Key Features
- 5 GHz wireless bridge
- 17 dBi sector antenna
- Up to 3 miles range
- Gigabit RJ-45, passive PoE
- IPX6, NDAA compliant
- Pole mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Device Bridge Pro Sector
Product Type: Wireless bridge
Packaged Quantity: 1
Color Category: White
Network and Communication
Connectivity Technology: Wireless
Data Link Protocols: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Encryption: AES, WPA2
Line Coding Format: 16 QAM, 256 QAM, 64 QAM, BPSK, QPSK
Capacity: Spatial streams: 2
Wireless LAN: 802.11a/n/ac
Network Band: 5 GHz
Network Device: Maximum data rate (5 GHz): 400 Mbps
Antenna Form Factor: Internal
Antenna Gain Level: 17 DBi
Max Range Open Space: 3 miles
Features: 2x2 MIMO technology, Reset button, UV resistant casing, Weatherproof
Connectivity
Interface Provided: 1 x 1000Base-T - RJ-45
Power Over Ethernet (PoE): Passive PoE
Power
Required Voltage: DC 42.5 - 57 volt
Power Consumption Operational: 6 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Pole mountable
Status Indicators: Ethernet link/activity, Power, Signal strength
Dimensions and Weight
Height: 14.2 inch
Width: 4.7 inch
Depth: 2.8 inch
Weight: 29.45 ounce
Included Items
Included Accessories: Pole mount, Power cable
Certifications and Listing
Compliant Standards: FCC, IC, IPX6, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
