Product Information

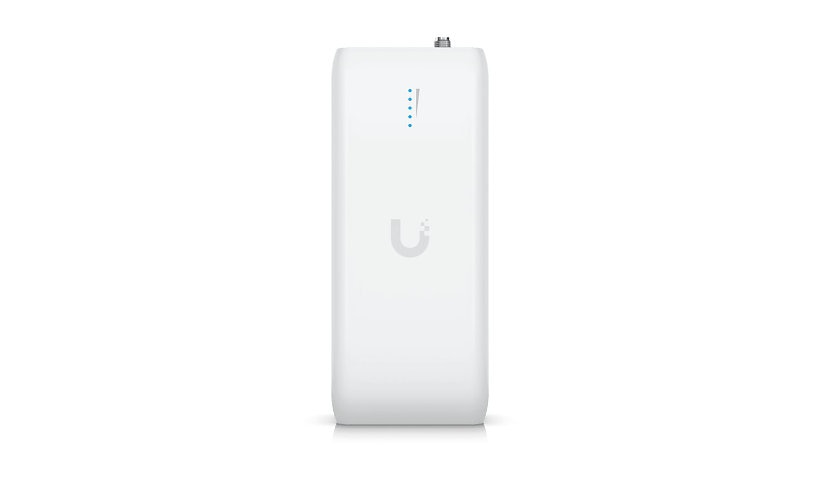

The UniFi Device Bridge is a 5 GHz 802.11ac wireless bridge with 2x2 MIMO and a detachable RP-SMA antenna, used to link a wired device to a UniFi network. It has a Gigabit port that can supply PoE up to 15 W, runs on AC power and includes a wall mounting kit. This is a bridge, not an access point.
Key Features
- 5 GHz 802.11ac bridge, 2x2
- Detachable RP-SMA antenna
- Gigabit RJ-45, PoE out up to 15 W
- AC 100-240 V powered
- 14 to 104 °F
- Wall mounting kit
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Device Bridge
Product Type: Bridge
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Bridge & Router: Maximum data rate (5 GHz): 866.7 Mbps
Wireless LAN: 802.11a/n/ac
Broadband Transmission Technology: 5 GHz
Antenna Form Factor: External detachable and internal
Features: 2x2 MIMO technology, Passive PoE supported, PoE up to 15 watts per port, Polycarbonate enclosure
Connectivity
Interface Provided: Antenna: 1 x RP-SMA, LAN: 1 x 1000Base-T (PoE) - RJ-45
Power
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Wall-mountable
Status Indicators: Signal, Status
Dimensions and Weight
Height: 5.1 inch
Width: 2.2 inch
Depth: 1.3 inch
Weight: 7.05 ounce
Included Items
Included Accessories: Power cable, Wall mounting kit
Certifications and Listing
Compliant Standards: FCC, IC
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
