Product Information

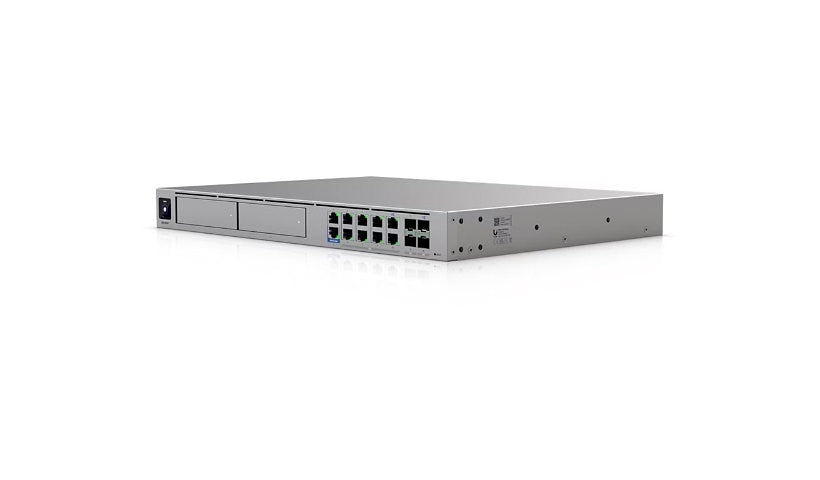

The Ubiquiti UniFi Dream Machine Beast is a 1U UniFi gateway and console for large sites, supporting up to 750 UniFi devices, 7,500 simultaneous users, 100 cameras and 200 managed hubs, with 16 GB of RAM. It has seven 10G RJ-45 LAN ports, two Gigabit LAN ports, two 10G SFP+ and one 25G SFP28 LAN port, plus 10G RJ-45 and SFP28 WAN uplinks and a console. This is a gateway router, not a dedicated firewall appliance.
Key Features
- Up to 750 UniFi devices
- 7,500 simultaneous users
- 7 x 10G RJ-45 LAN
- 25G SFP28 + 10G SFP+
- 16 GB RAM
- 1U rack mount
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Dream Machine Beast
Product Type: Router
Packaged Quantity: 1
Color Category: Gray
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet, 5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Network Standard: IPSec, IPv6, L2TP, OpenVPN
Remote Management: DHCP
Routing Protocol: BGP, IGMP, OSPF
Bridge & Router: IDS/IPS throughput: 25 Gbps
Authentication Method: RADIUS, RADSEC
Encryption: TLS
Capacity: Managed hubs: 200, Maximum cameras: 100, Number of UniFi supported devices: 750, Simultaneous users: 7500
MAC Address Table Size: 32000 entries
Integrated Switch: 8-port switch
Key Features: Firewall, VPN support
Features: 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), Ad blocking, Advanced QoS, Aluminum/steel housing, Application-aware layer 7 firewall, Bluetooth management, Content filtering, DHCP server, DNAT support, DPI & traffic identification, IGMP proxy, Internet quality, Intrusion Detection and Prevention (IDP), Intrusion Prevention System (IPS), LACP port aggregation, mDNS, Multi-WAN load balancing, OpenVPN client, OpenVPN server, Outage reporting, Policy-based WAN, Reset button, Safety latch, SNAT support, Virtual Route Redundancy Protocol (VRRP) support, VPN routing, WireGuard, Zone-based firewall advanced filtering
Connectivity
Interface Provided: Console: 1 x, LAN: 1 x 25Gb Ethernet - SFP28, LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45, LAN: 2 x 10Gb Ethernet - SFP+, LAN: 7 x 10Gb Ethernet - RJ-45, WAN: 1 x 10Gb Ethernet - RJ-45, WAN: 1 x 25Gb Ethernet - SFP28
Expansion Slots: 2 (total) / 2 (free) x 3.5" HDD bay
WAN Ports Quantity: 2
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: ARM
Processors Installed: 1
Clock Speed: 2.1 GHZ
RAM Installed: 16 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Disk, Link/activity, RPS (Redundant Power Supply), SFP+
Built-in Devices: 1.3" touch screen display, 128 GB SSD
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 12.8 inch
Weight: 12.13 lbs
Included Items
Included Accessories: Power cable
Warranty
Service Activation: No
Not sure this is the right security appliance for your site? Send us your user count, internet speed and current firewall model and the DatorPro team will help you confirm the fit before you order.
