Product Information

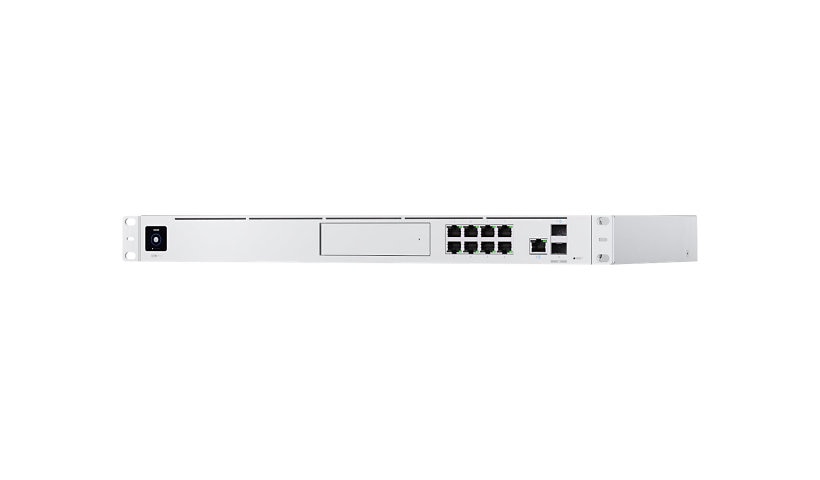

Ubiquiti's UniFi Dream Machine Pro is a 1U network appliance that combines a UniFi controller with a security gateway. It has eight Gigabit LAN ports, a Gigabit WAN, a 10G SFP+ WAN and a 10G SFP+ LAN port, a 3.5 inch drive bay and a 1.3 inch touch screen, with 3.5 Gbps IPS throughput.
Key Features
- 8 x GbE LAN, 1 x GbE WAN
- 1 x 10G SFP+ WAN, 1 x 10G SFP+ LAN
- 3.5 Gbps IPS, DPI, dual WAN failover
- 1 x 3.5 inch internal drive bay
- ARM Cortex-A57 1.7 GHz, 4 GB RAM, 16 GB flash
- 1U rack kit included, 1.3 inch touch screen
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Dream Machine Pro
Product Type: Network management device
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
Network Device: IPS throughput: 3.5 Gbps
Features: 12KV ESD Protector (contact discharge), 16KV ESD Protector (air-gap discharge), Auto-uplink (auto MDI/MDI-X), Bluetooth management, Content filtering, Deep Packet Inspection (DPI), Dual WAN failover, Jumbo Frames support, Quality of Service (QoS), RADIUS support, Spanning Tree Protocol (STP) support, Storm Control, VPN Server
Software Type: UniFi Controller
Connectivity
Expansion Bays: 1 (total) / 1 (free) x internal - 3.5"
Interface Provided: 1 x 1000Base-T - RJ-45 (WAN), 1 x 10GBase-X - SFP+, 1 x 10GBase-X - SFP+ (WAN), 8 x 1000Base-T - RJ-45
Power
Device Type: Internal power supply
Memory and Processor
Processor Brand: ARM
Processor Type: Cortex-A57
Processors Installed: 1
Clock Speed: 1.7 GHZ
RAM Installed: 4 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 16 GB
Total Processor Supported: 1
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: HDD activity, Link/activity/speed
Built-in Devices: 1.3" touch screen display
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.2 inch
Weight: 8.6 lbs
Included Items
Included Accessories: Rack mount kit
Certifications and Listing
Compliant Standards: IEEE 802.1x
Warranty
Service Activation: No
