Product Information

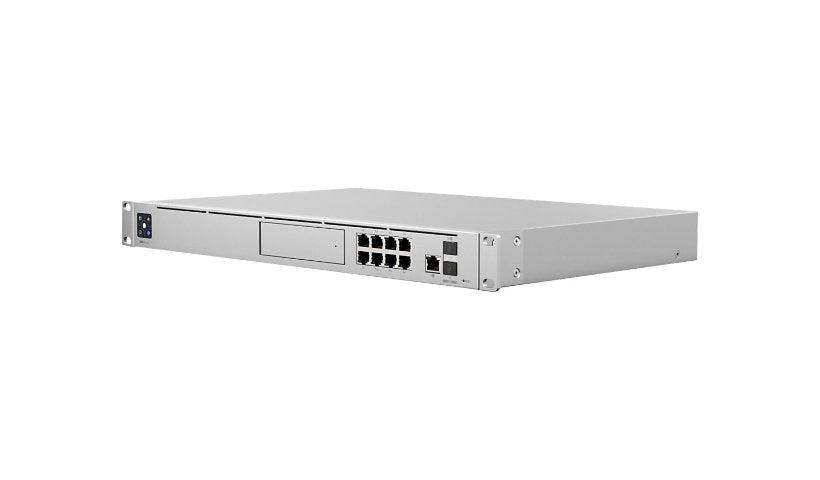

Ubiquiti's UDM-SE (Dream Machine Special Edition) combines a router, a security gateway, a built-in PoE switch and an NVR for cameras in one 1U unit. It runs UniFi OS and offers dual-WAN connectivity over 10G SFP+ and 2.5GbE, plus IDS/IPS threat protection. It supports an optional redundant power supply.
Key Features
- Router, security gateway and UniFi OS console
- Built-in PoE+ switch and NVR
- Dual WAN: 10G SFP+ and 2.5GbE
- IDS/IPS, Bluetooth setup
- 4 GB RAM, 16 GB flash
- 1U rack mount, redundant power optional
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: Dream Machine Special Edition
Product Type: Network management device
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet
Switching Protocol: Ethernet
Network Device: Intrusion detection throughput: 3.5 Gbps, IPS throughput: 3.5 Gbps
Operating System Edition: UniFi OS
Features: 15KV ESD Protector (air-gap discharge), 8KV ESD Protector (contact discharge), Bluetooth management, Firmware upgradable, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), Reset button, Routing
Connectivity
Expansion Bays: 1 (total) / 1 (free) x internal - 2.5" / 3.5"
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Provided: 240 watt
Redundant Power Supply: Optional
Memory and Processor
Processors Installed: 1
Clock Speed: 1.7 GHZ
RAM Installed: 4 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 16 GB
Total Processor Supported: 1
Hard Drive Capacity: 128 GB
Port Expansion Hard Drive Type: SSD
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: HDD activity, HDD fault, Link/activity, RPS (Redundant Power Supply)
Built-in Devices: 1.3" touch screen display, NVR
Installed Quantity: 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 11.2 inch
Weight: 10.91 lbs
Certifications and Listing
Compliant Standards: IEEE 802.3af, IEEE 802.3at
