Product Information

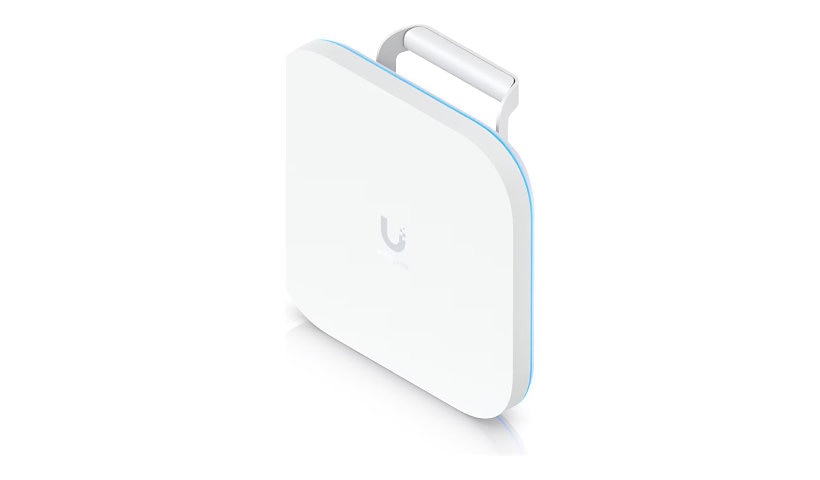

Ubiquiti's UniFi E7 Campus is a high performance Wi-Fi 7 access point for large venues, with 4x4 MU-MIMO on 5 and 6 GHz, 2x2 on 2.4 GHz, active RF filtering and support for 1000+ devices. It has 10G and Gigabit PoE++ ports, works from -40 to 140 °F and includes a wall/ceiling kit.
Key Features
- Wi-Fi 7 tri-band
- 4x4 MU-MIMO (5/6 GHz), 2x2 (2.4 GHz)
- 10G + 1G RJ-45 (PoE++)
- Active RF filtering
- 1000+ connected devices
- Power injector not included
Product Information
Brand: Ubiquiti
Manufacturer: Ubiquiti
Product Line: Ubiquiti UniFi
Model: E7 Campus
Product Type: Wireless access point
Device Type: Power injector (not included)
Packaged Quantity: 1
Color Category: White
Country: United States
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 10 Gigabit Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n
Authentication Method: RADIUS, RADSEC
Encryption: TLS
Capacity: BSSIDs per radio: 8, Connected devices: 1000+, Spacial streams: 10
Wireless LAN: 802.11a/b/g/n/ac/ax/be
Network Band: 2.4 GHz, 5 GHz, 6 GHz
Network Device: Channel bandwidth: 20 / 40 / 80 / 160 / 240 / 320 MHz, Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 8.6 Gbps, Maximum data rate (6 GHz): 11.5 Gbps
Antenna Form Factor: Internal
Directivity: Directional
Operating System Required: UniFi Network 10.0.162 or later
Features: 2x2 MIMO 2.4GHz, 4x4 MU-MIMO technology, Active RF filtering technology, Advanced radio management, Aluminum alloy enclosure, Band steering, BSS transition management, Captive Portal, Custom branding landing page support, External portal server support, Fast Roaming, Isolated guest network support, LED status indicator, Passpoint Release 2, Password authentication, Payment-based authentication, Private Pre-Shared Key (PPSK), Radio resource management (RRM), Real-time spectral analysis, UV stabilized polycarbonate enclosure, VLAN support, Voucher authentication, Wi-Fi speed limiting, WiFi schedules, Wireless Mesh support
Connectivity
Interface Provided: 1 x 1000Base-T (PoE++) - RJ-45, 1 x 10GBase-T (PoE++) - RJ-45
Power Over Ethernet (PoE): PoE++
Power
Required Voltage: DC 42.5 - 57 volt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Wall / pole mountable
Status Indicators: System
Dimensions and Weight
Height: 9.8 inch
Width: 9.8 inch
Depth: 1.8 inch
Weight: 4.85 lbs
Included Items
Included Accessories: Wall/ceiling mounting kit
Certifications and Listing
Compliant Standards: IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
Compliant Standards: FCC, IC, NDAA
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
Not sure this fits your network? Send us your controller, switch or current access point model and the DatorPro team will confirm compatibility before you order.
